Both Server Roles, Front End and Edge, are installed on Windows Server 2019 but you can also use Windows Server 2016.
Install Skype for Business Prerequisites Front End Server

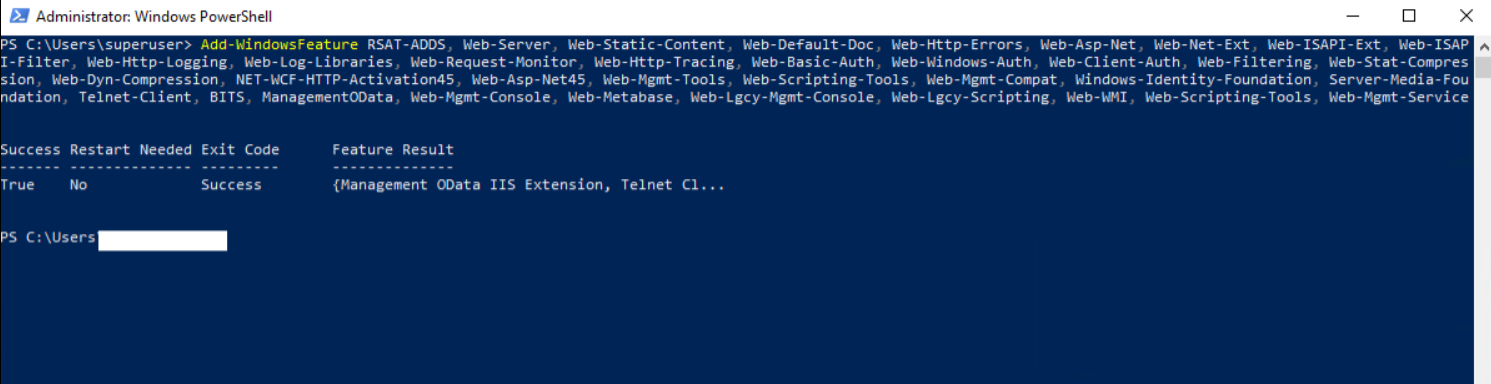

Add-WindowsFeature RSAT-ADDS, Web-Server, Web-Static-Content, Web-Default-Doc, Web-Http-Errors, Web-Asp-Net, Web-Net-Ext, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Http-Logging, Web-Log-Libraries, Web-Request-Monitor, Web-Http-Tracing, Web-Basic-Auth, Web-Windows-Auth, Web-Client-Auth, Web-Filtering, Web-Stat-Compression, Web-Dyn-Compression, NET-WCF-HTTP-Activation45, Web-Asp-Net45, Web-Mgmt-Tools, Web-Scripting-Tools, Web-Mgmt-Compat, Windows-Identity-Foundation, Server-Media-Foundation, Telnet-Client, BITS, ManagementOData, Web-Mgmt-Console, Web-Metabase, Web-Lgcy-Mgmt-Console, Web-Lgcy-Scripting, Web-WMI, Web-Scripting-Tools, Web-Mgmt-Service

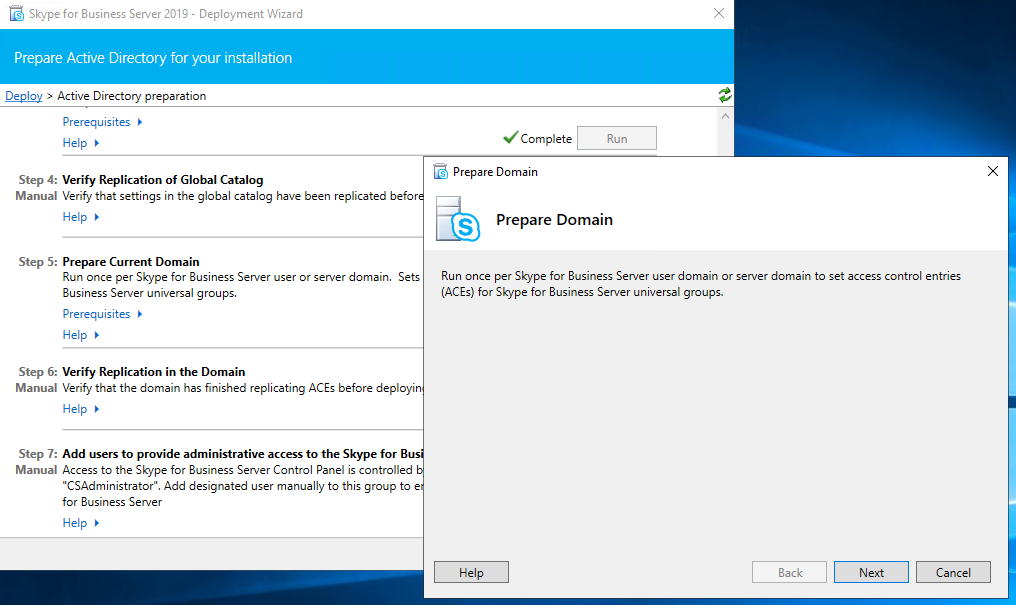

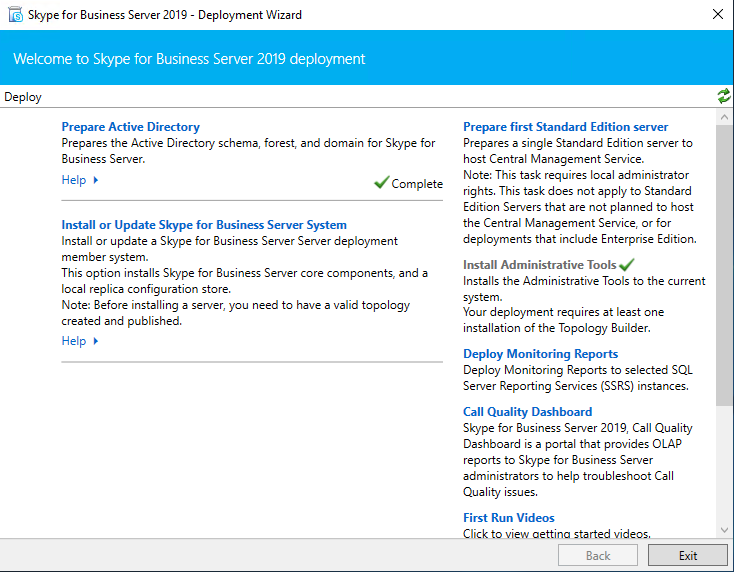

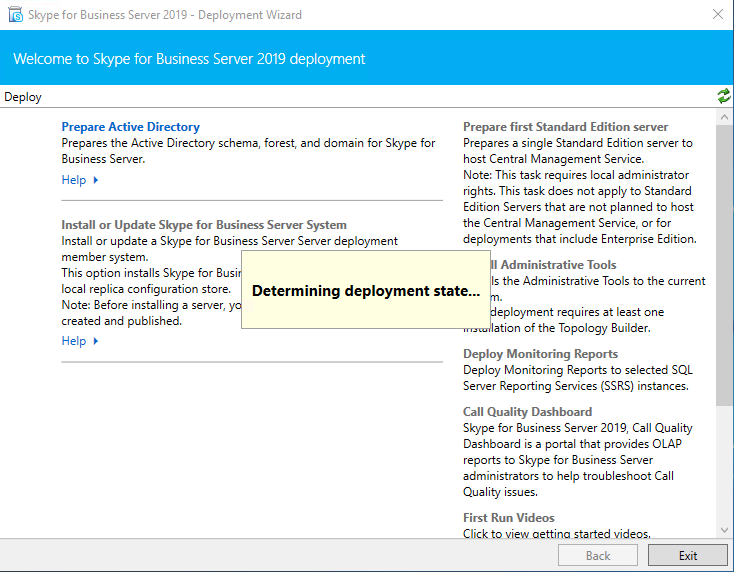

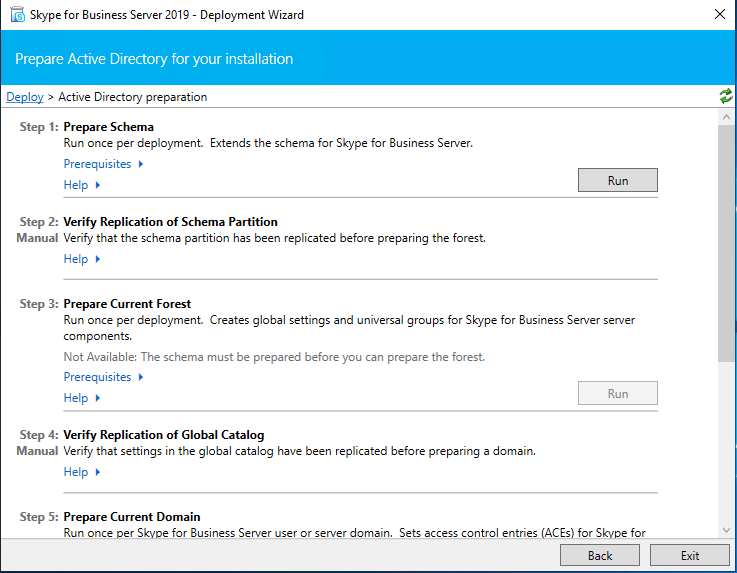

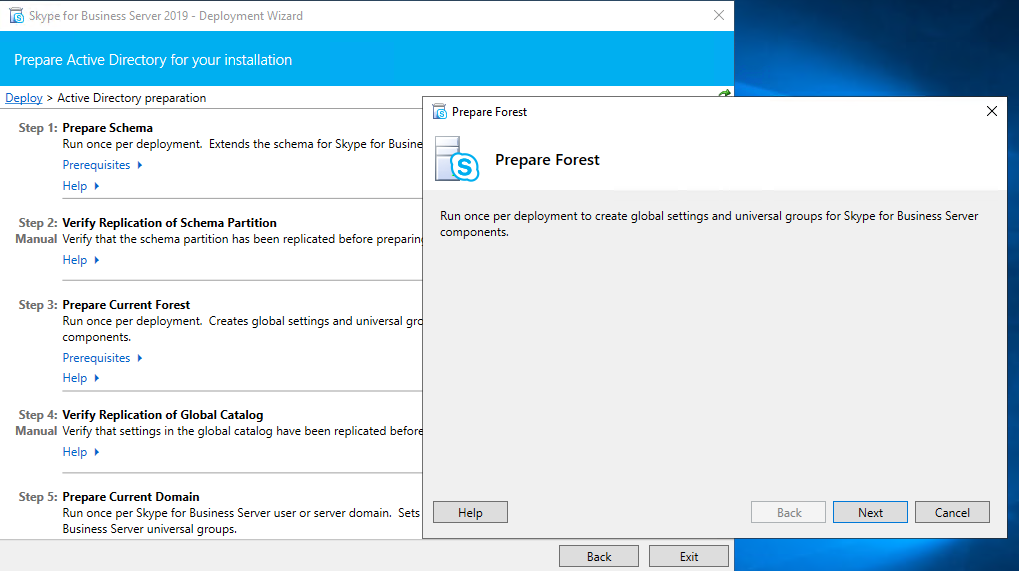

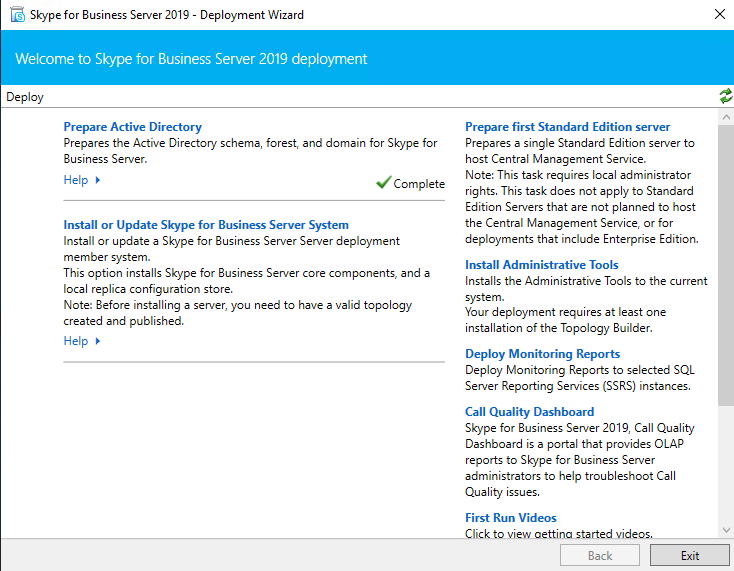

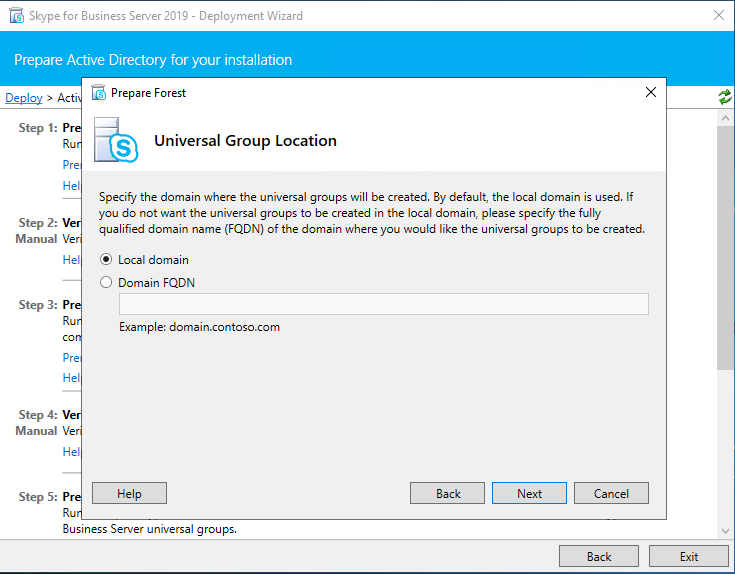

First I need to prepare the Active Directory as this is the first Skype for Business Server Setup in my Lab environment.

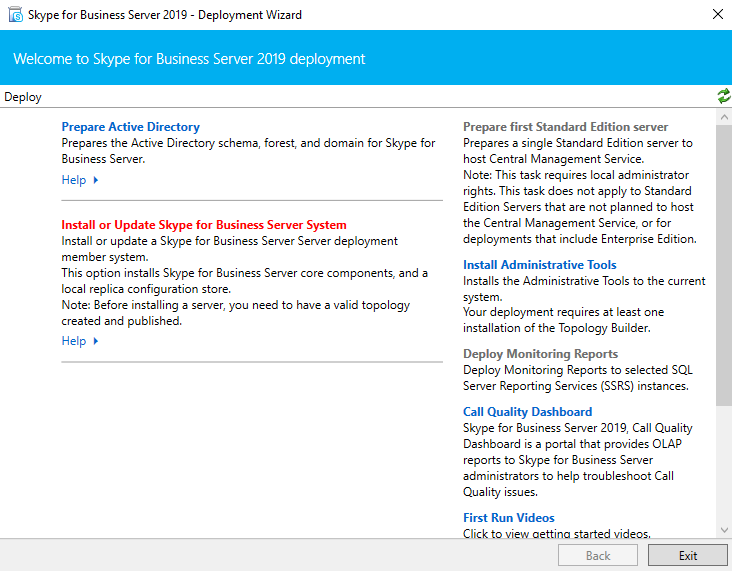

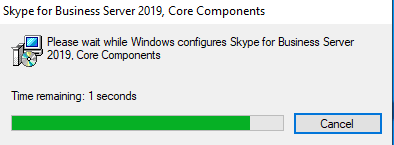

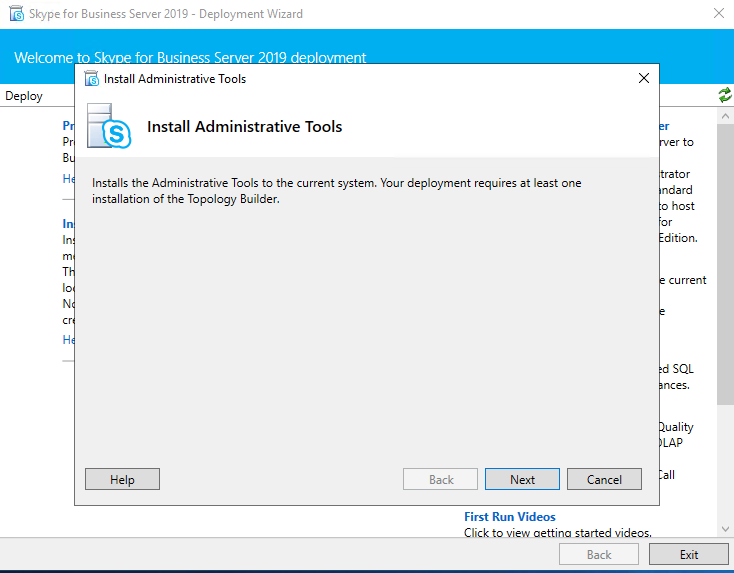

After we finished Prepare Active Directory next we install the Administrative Tools.

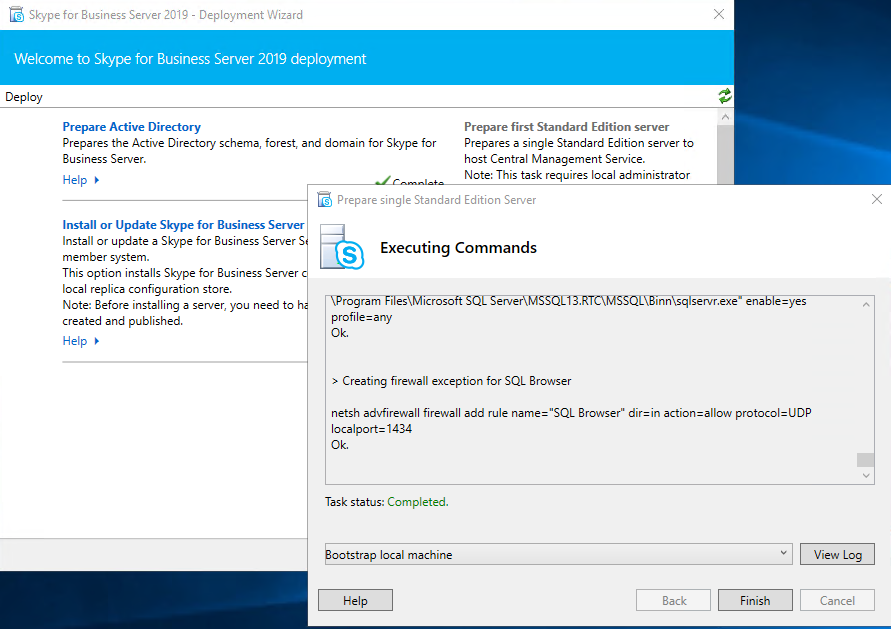

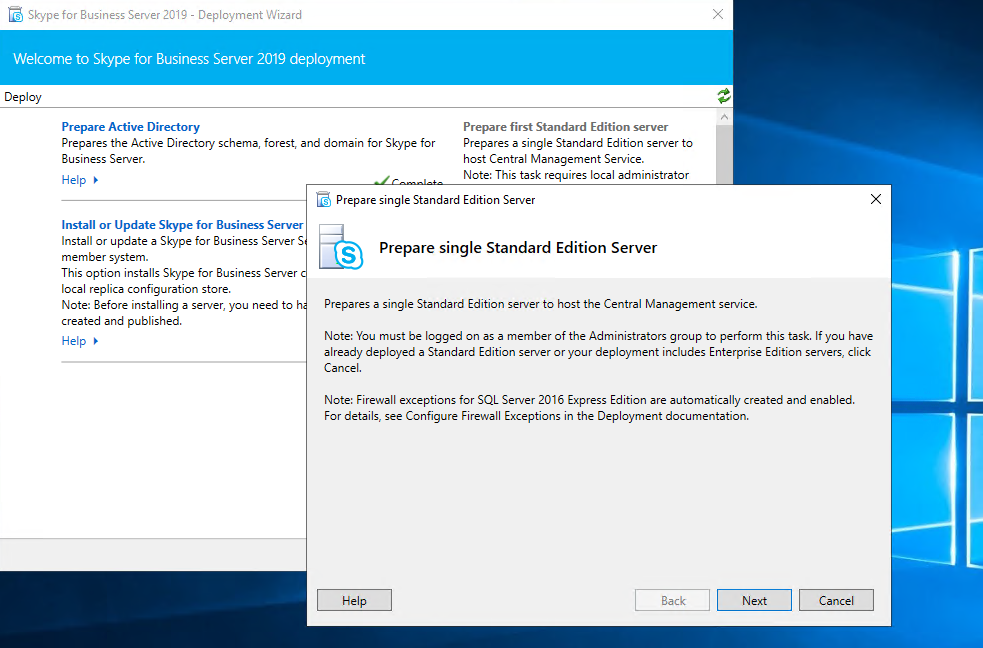

After installing the Administrative Tools we had to prepare the first Standard Edition Server.

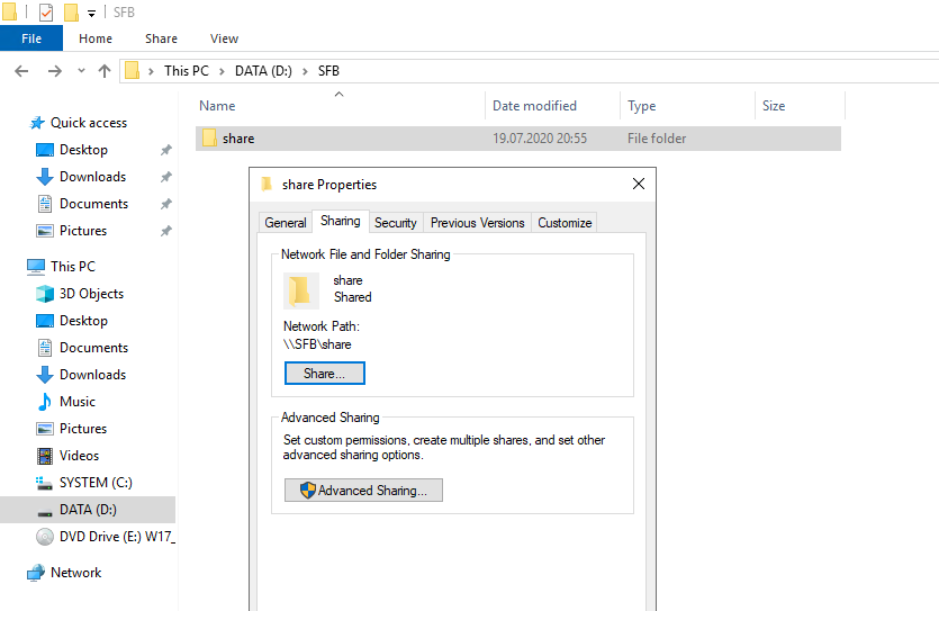

Create Network Share for Skype for Business

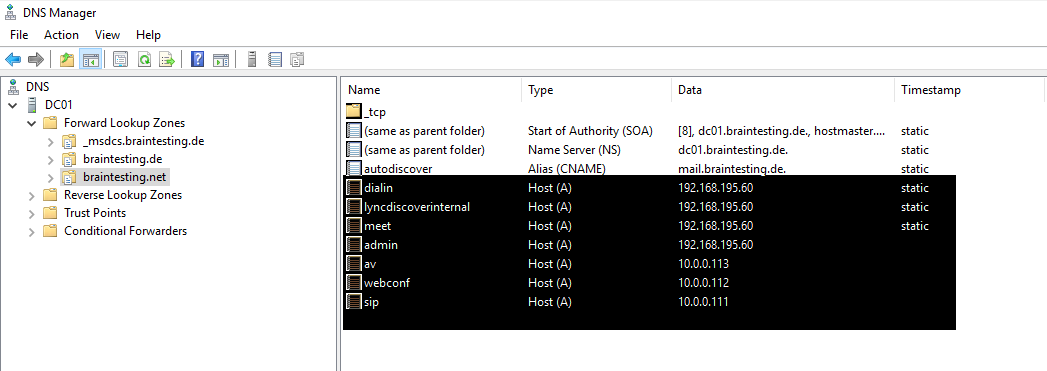

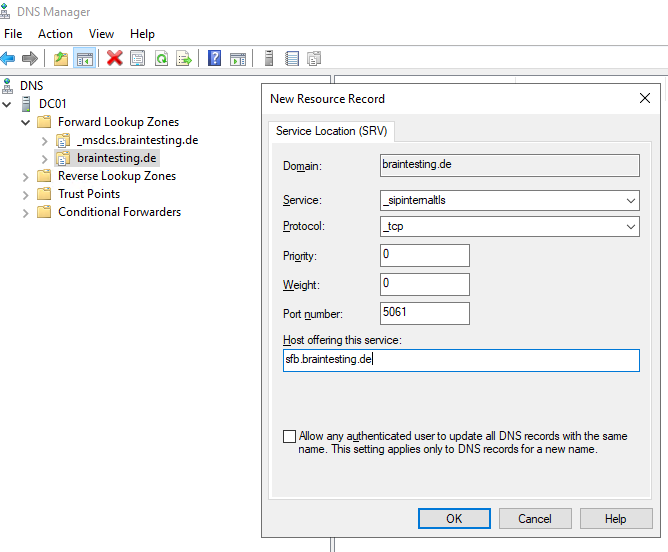

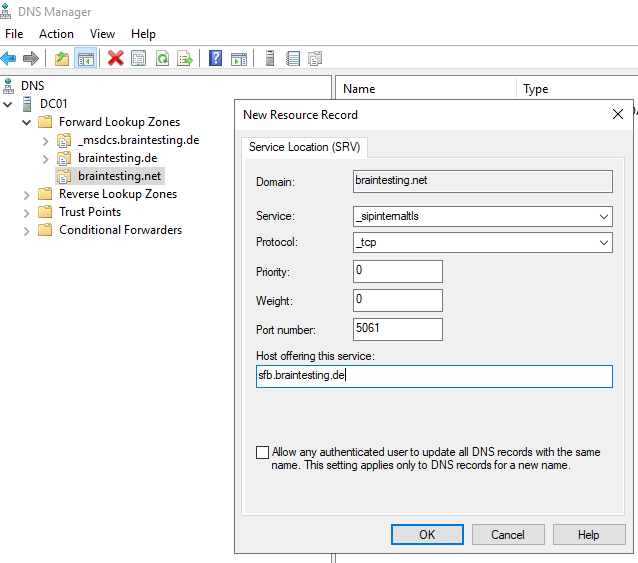

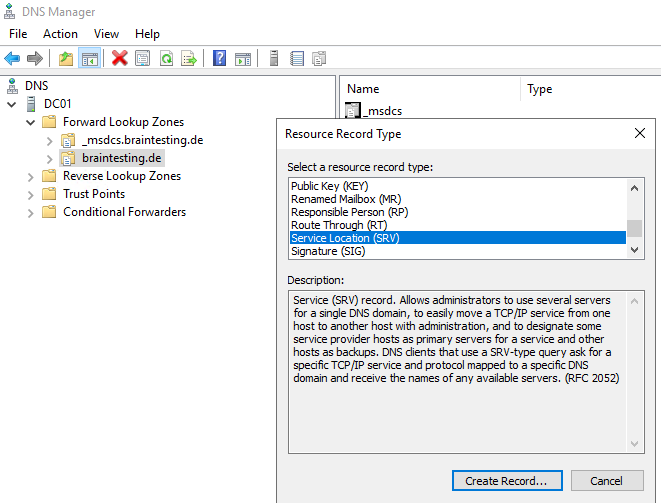

Create DNS Records for Skype for Business in the internal network. I want to use braintesting.net as primary domain and braintesting.de as the secondary domain.

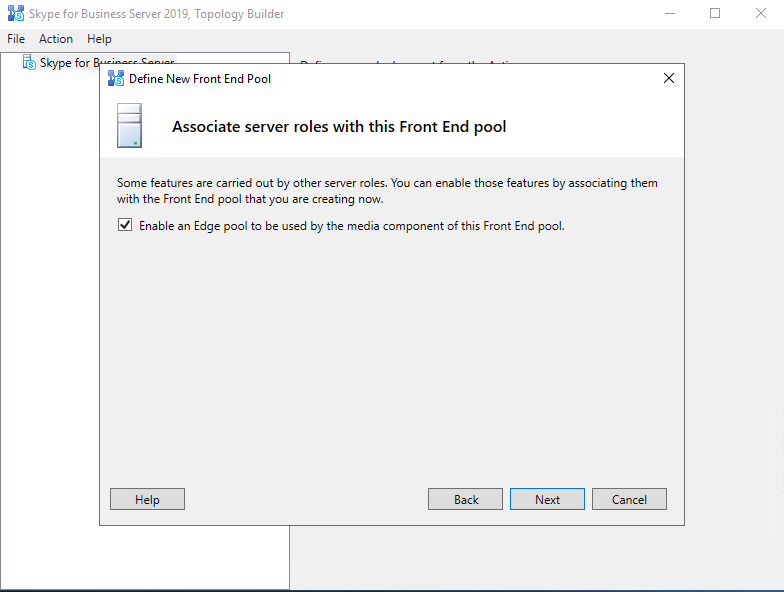

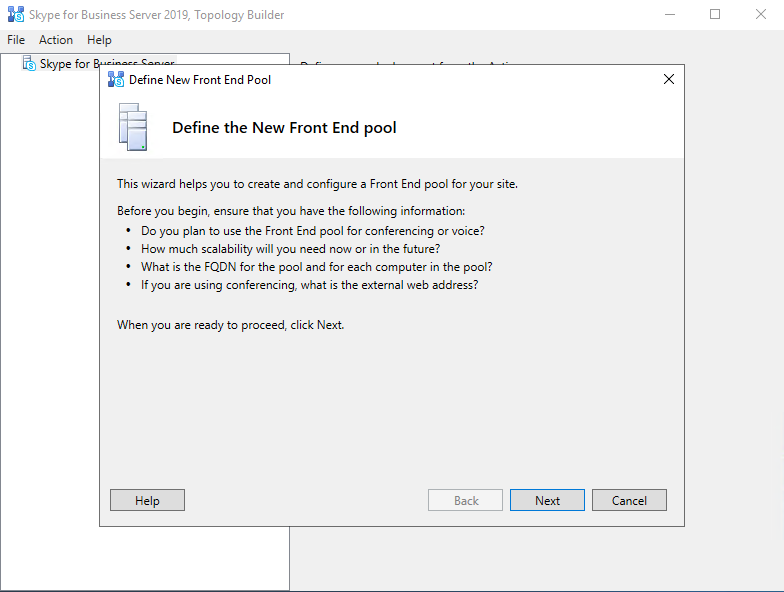

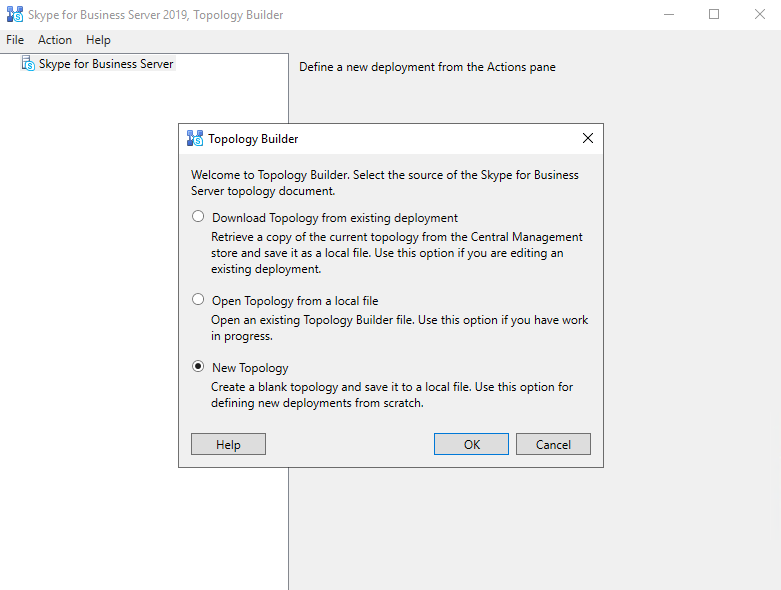

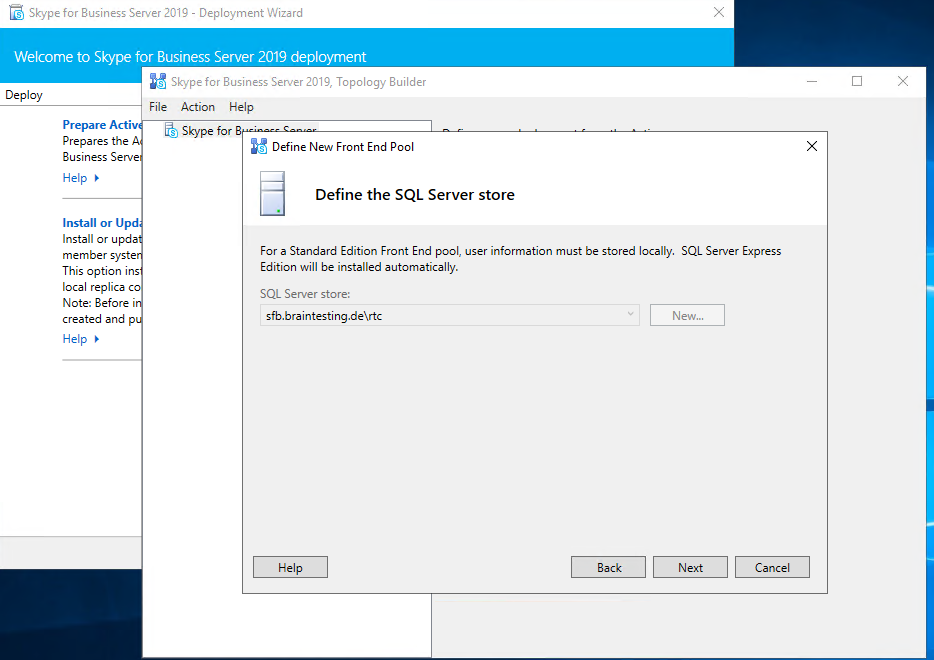

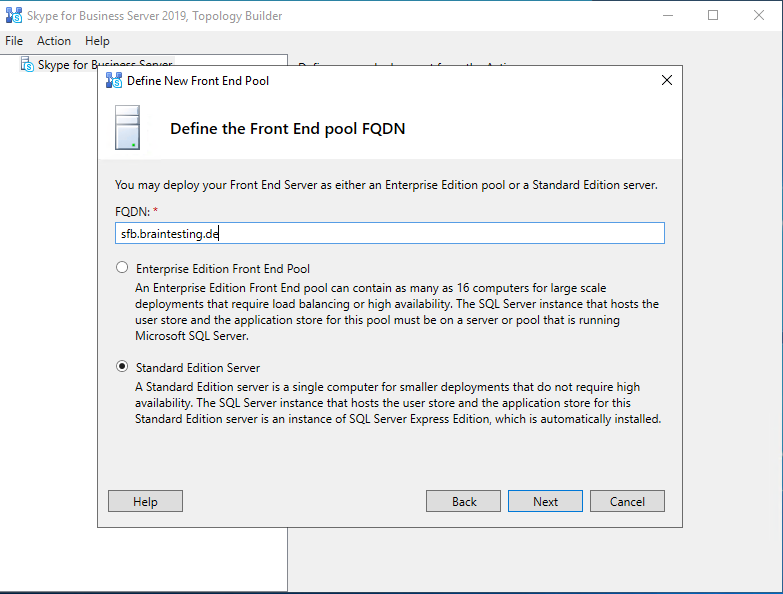

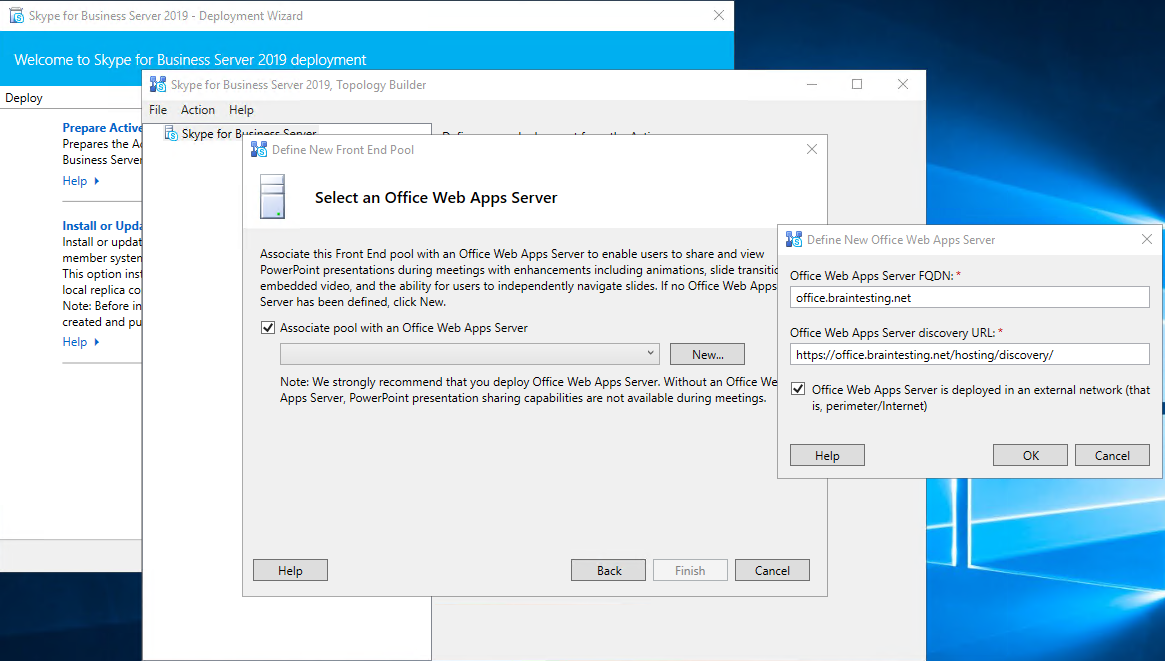

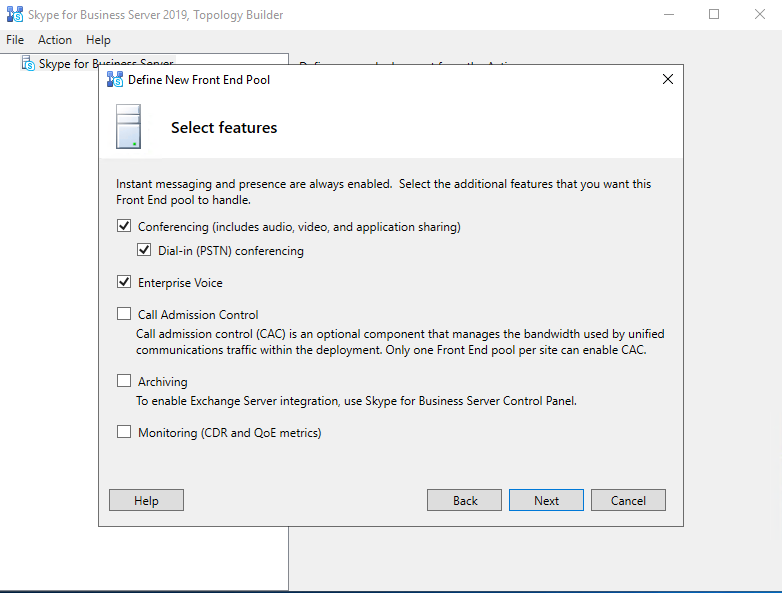

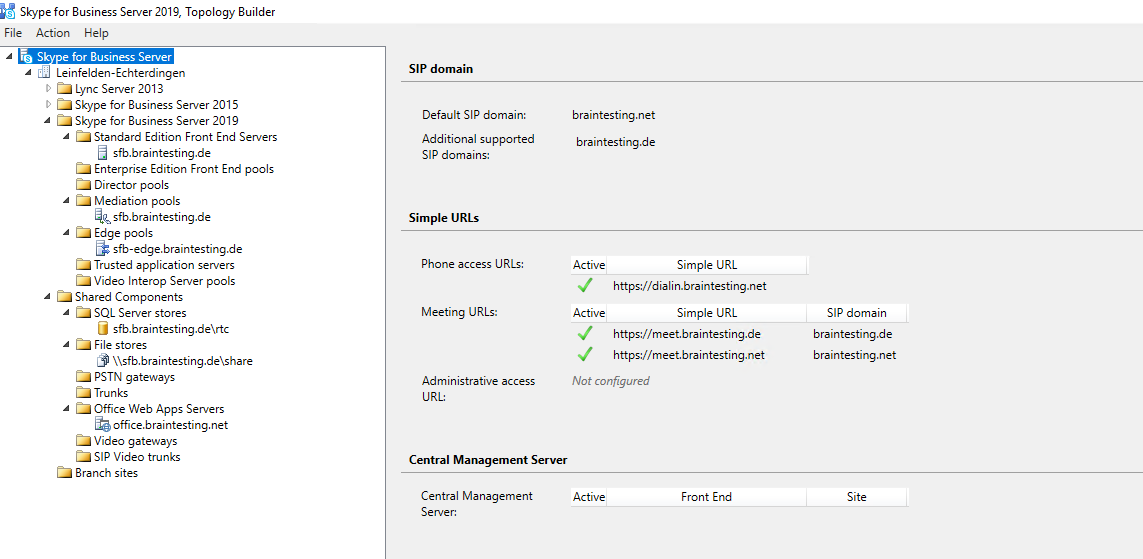

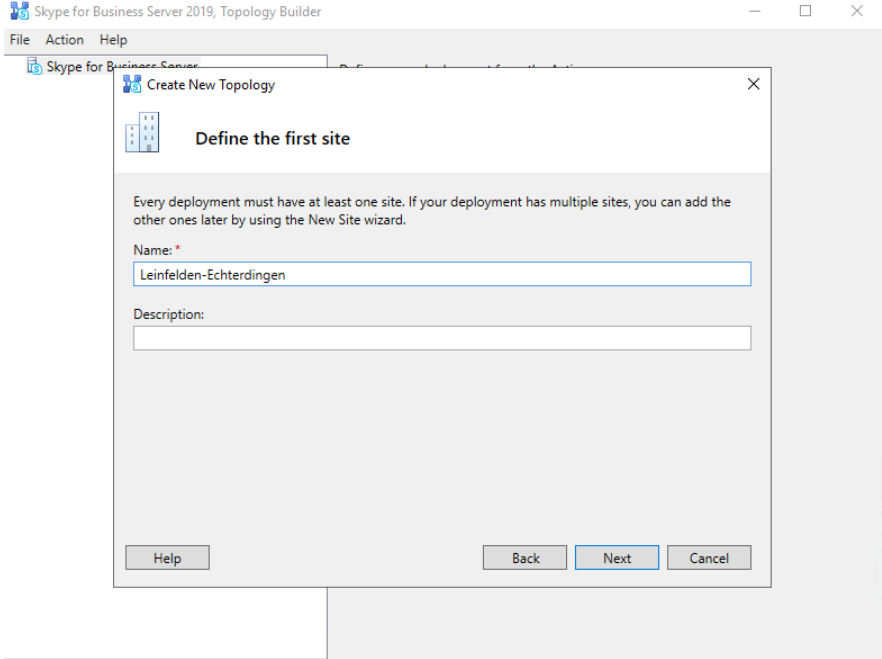

Now we can launch the Topology Builder and in my case, because it is the first Skype for Business Server in my LAB environment, I have to create a new Topology.

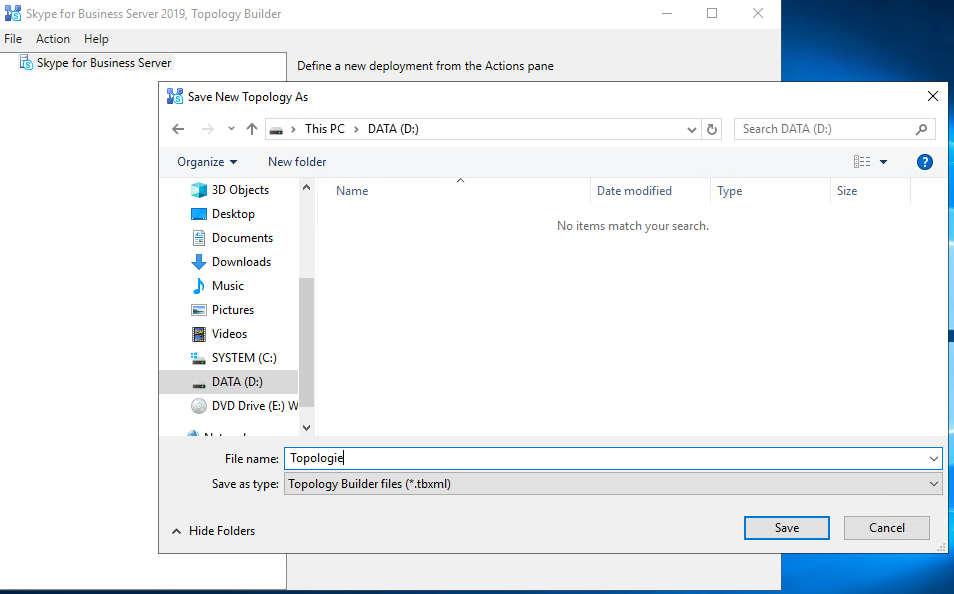

You need to save the Topologie into an xml file

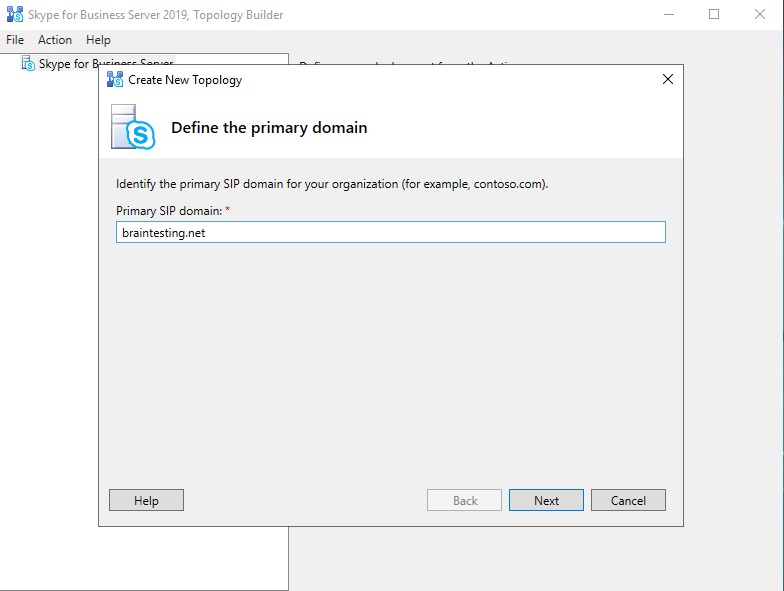

Enter the primary SIP domain for your deployment, in my case braintesting.net

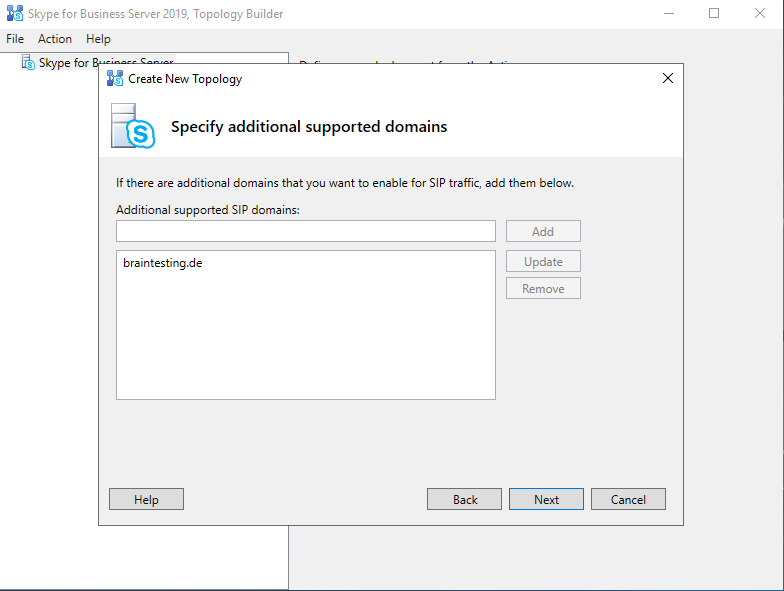

Further you can enable additional supported SIP domains, in my case I also want to use braintesting.de

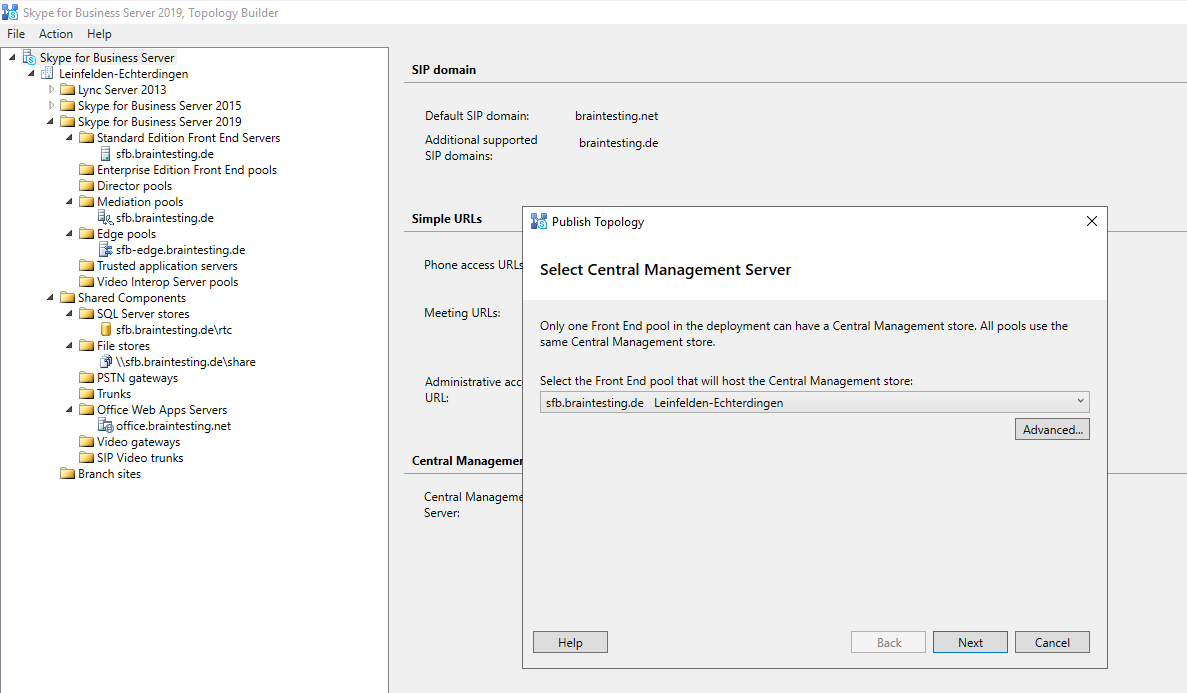

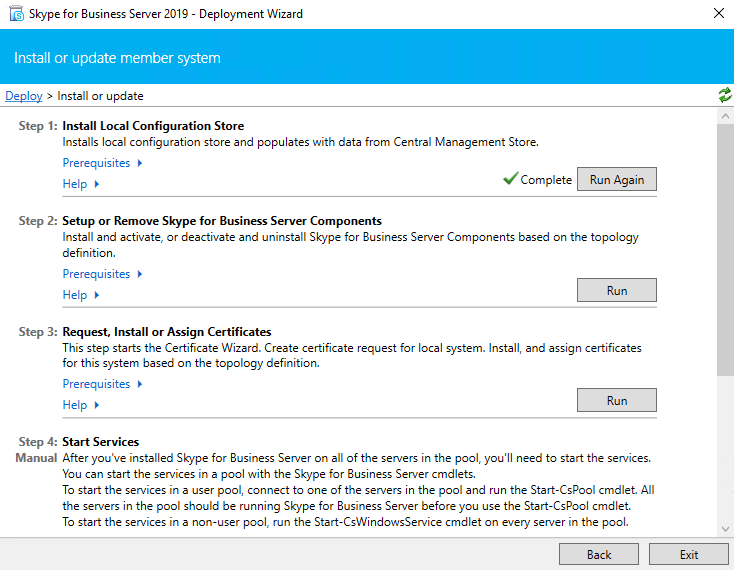

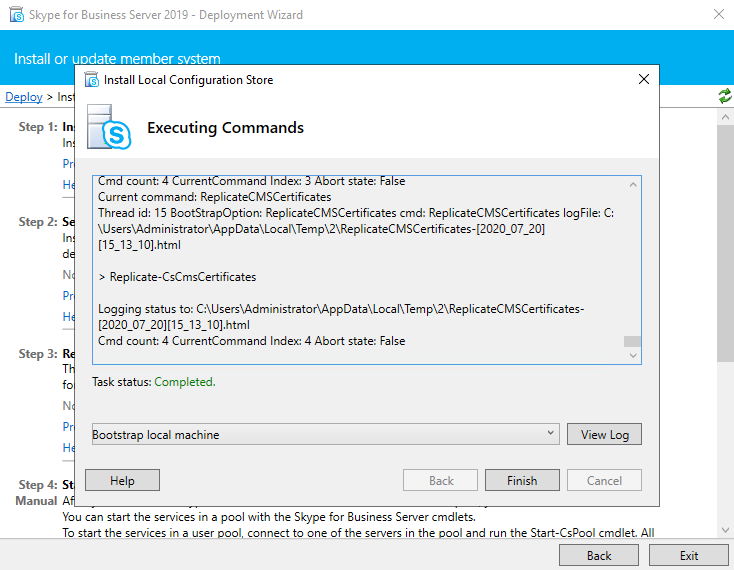

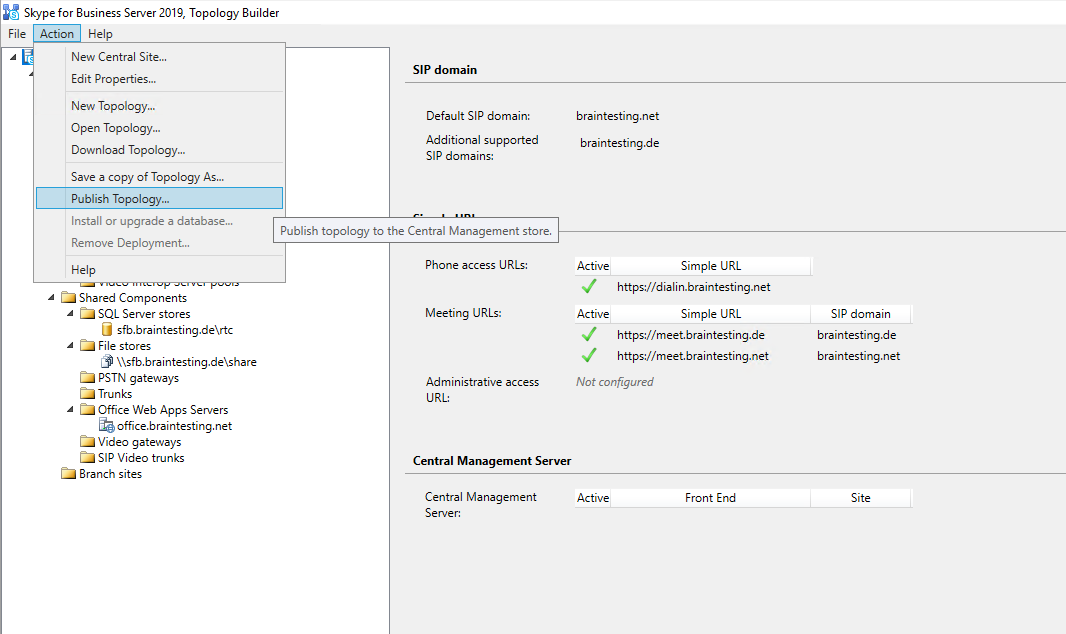

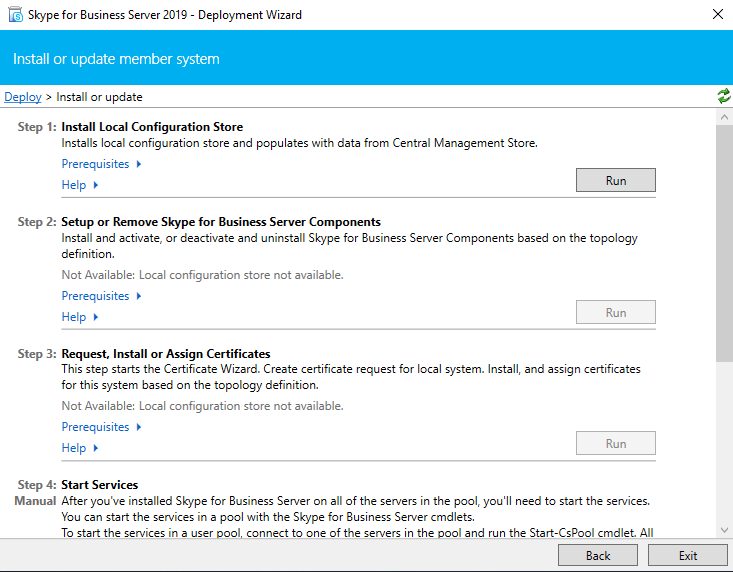

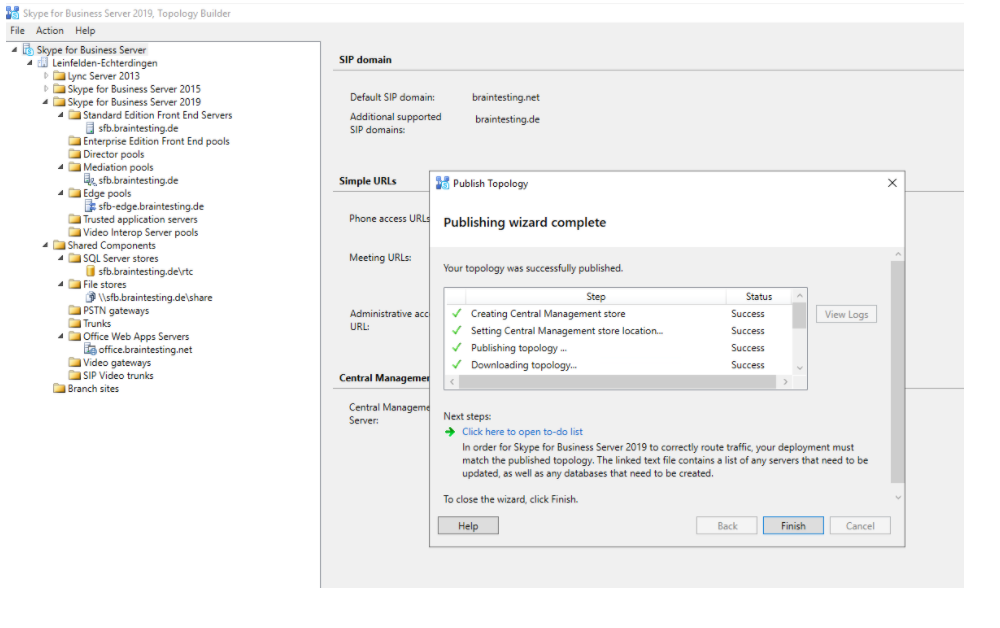

After publishing the Topology we need to run the Deployment Wizard. Click on Install or Update Skype for Business Server Systems and run the Install Local Configuration Store Wizard.

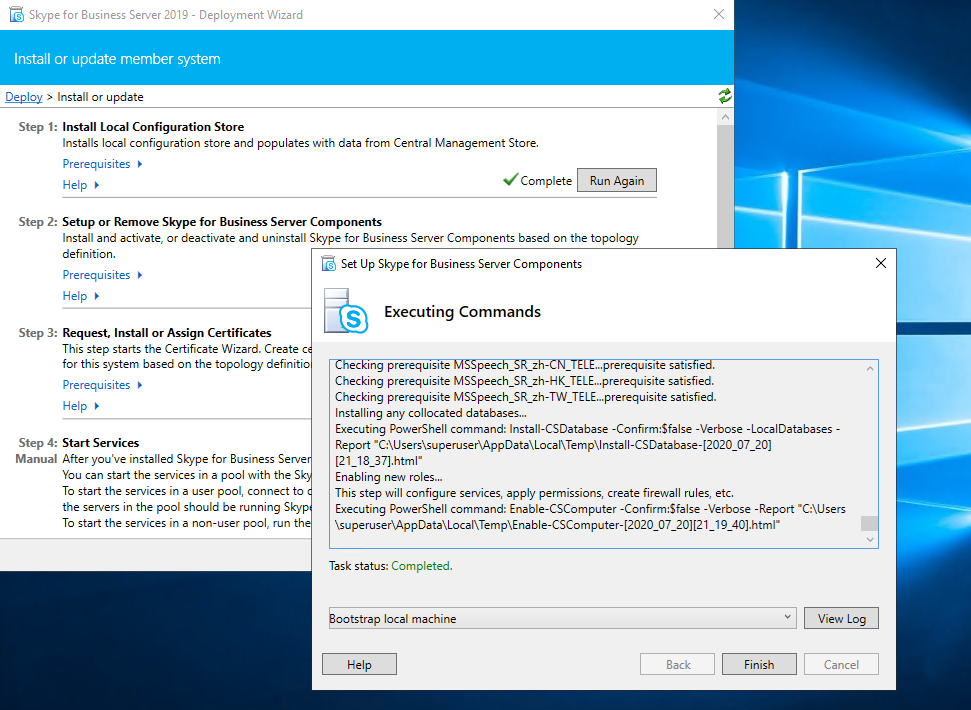

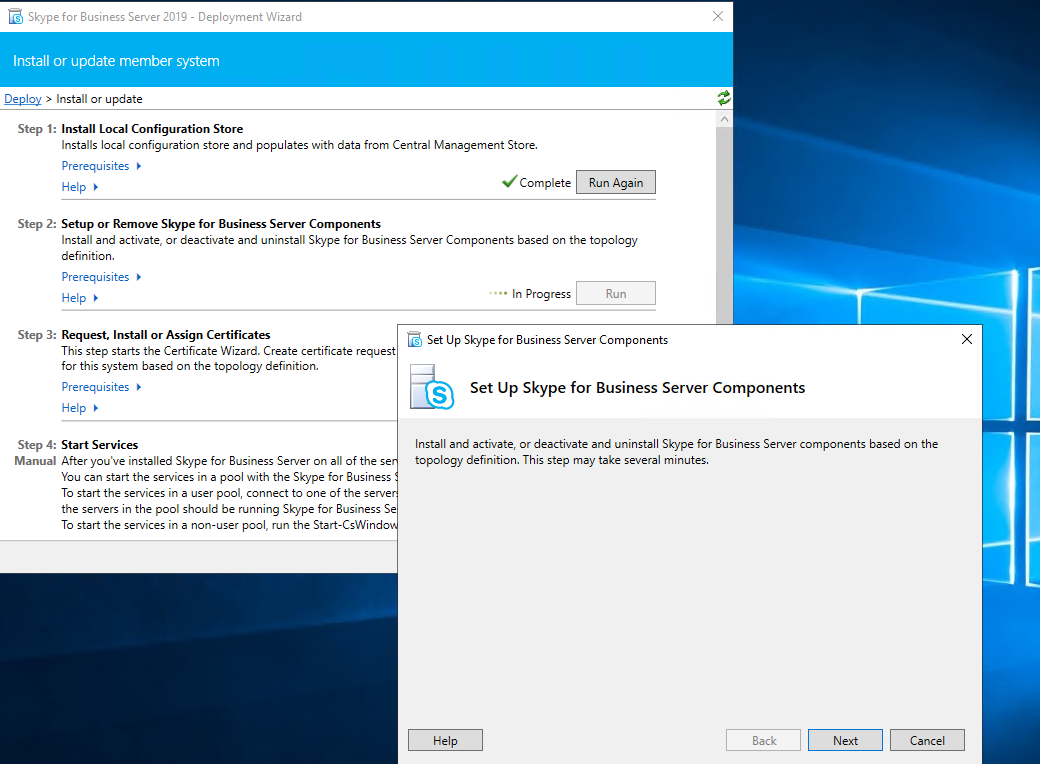

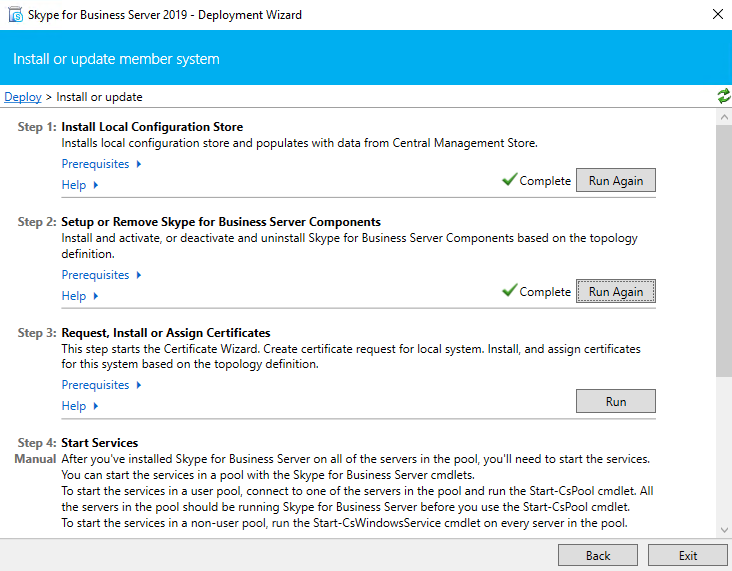

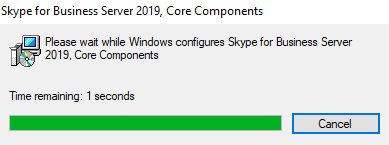

Now run Setup or Remove Skype for Business Server Components

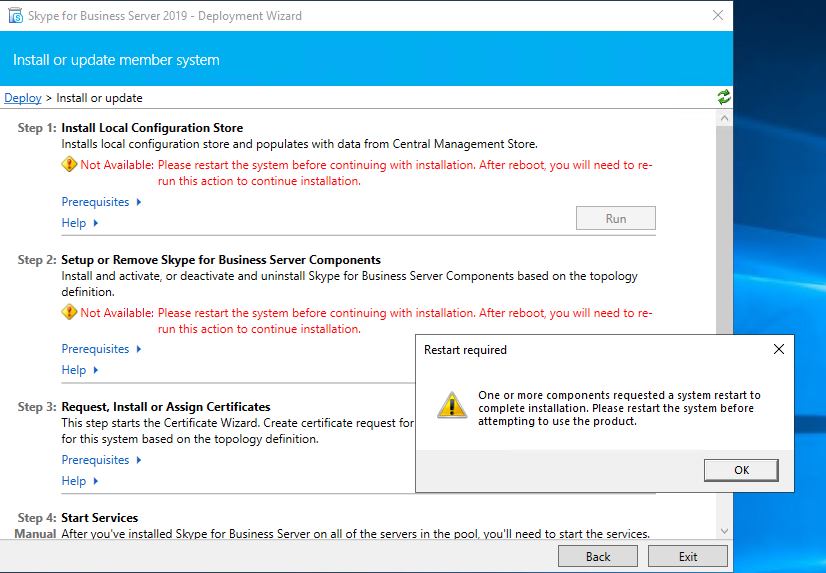

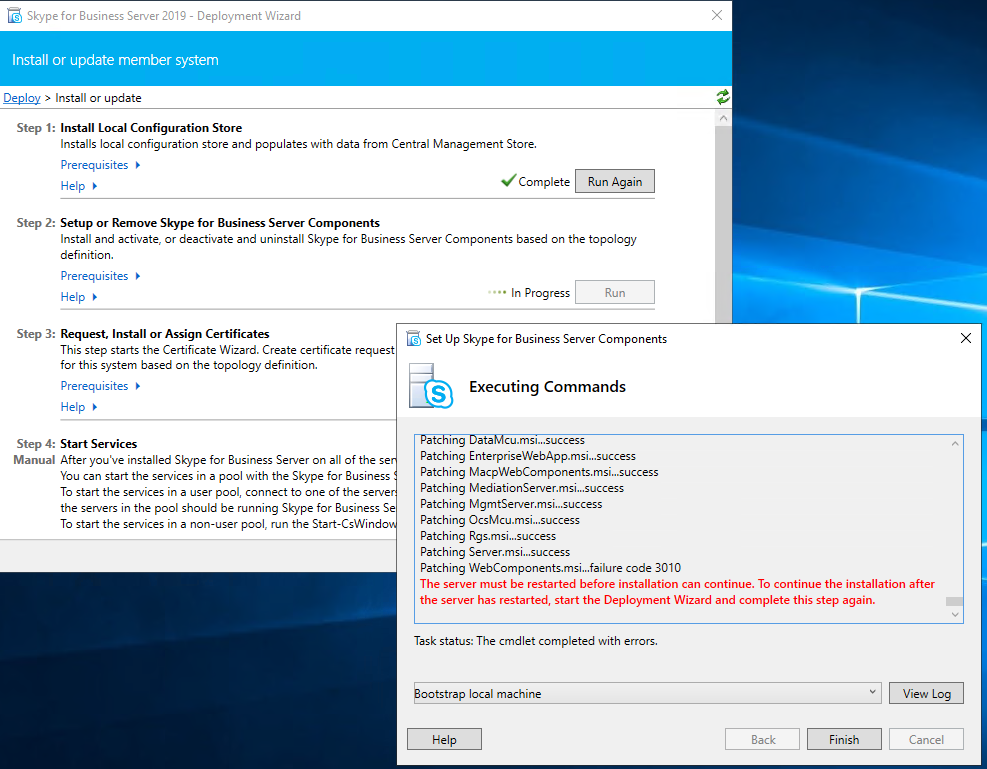

Run it after a reboot again

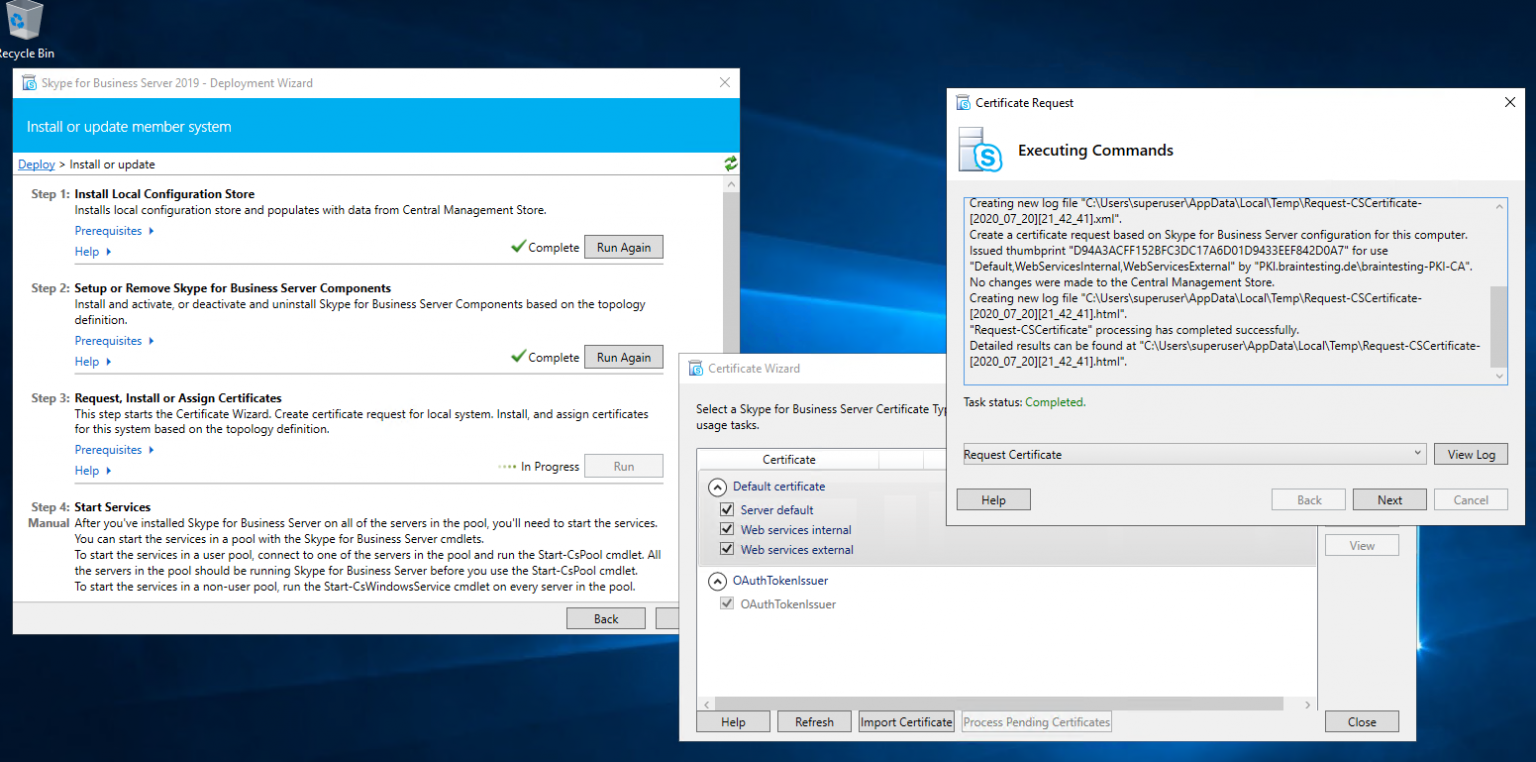

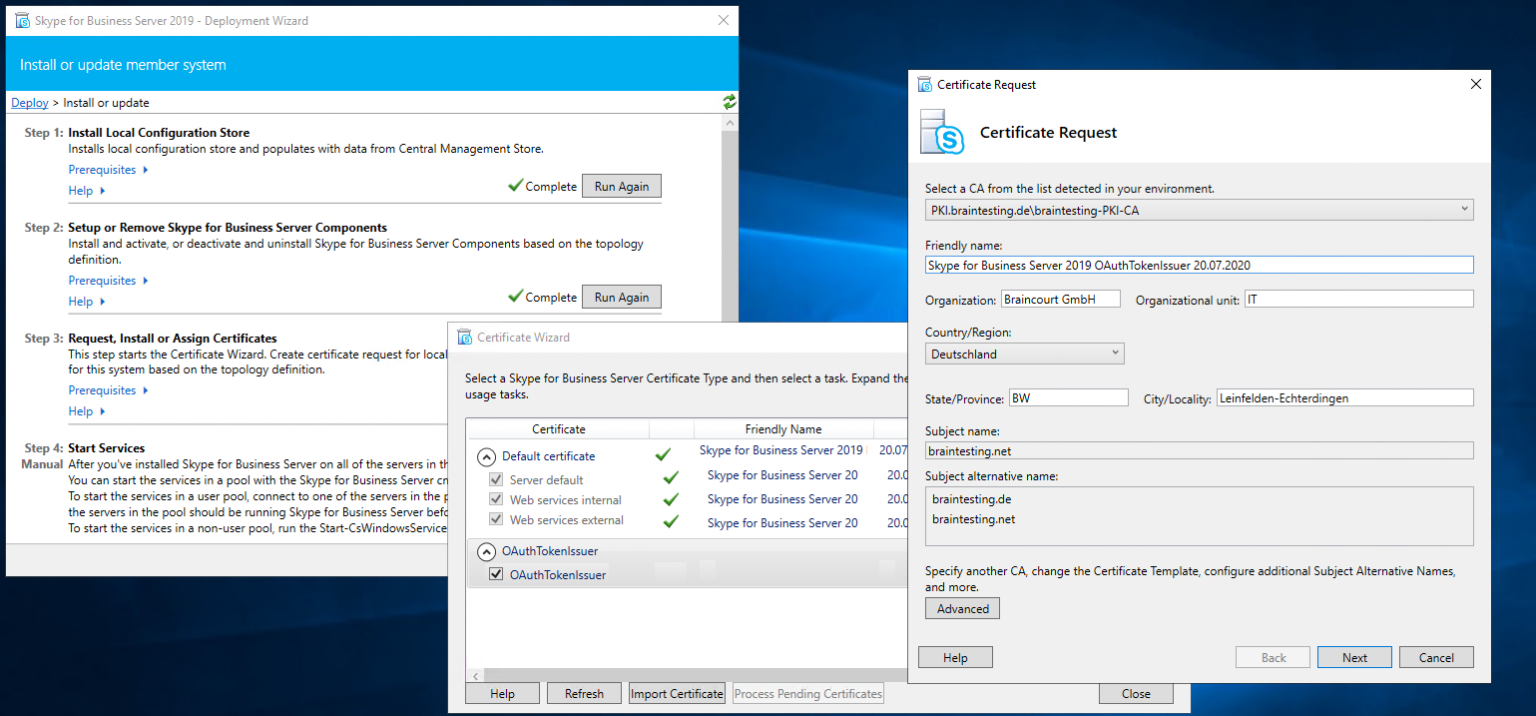

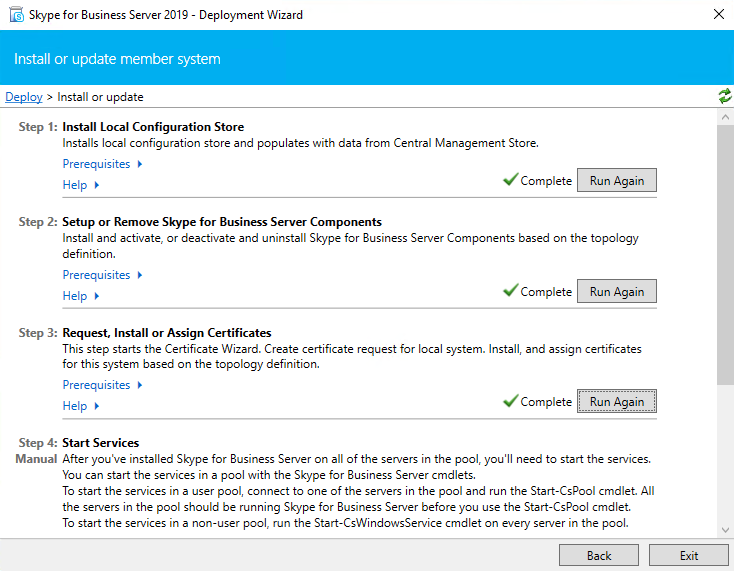

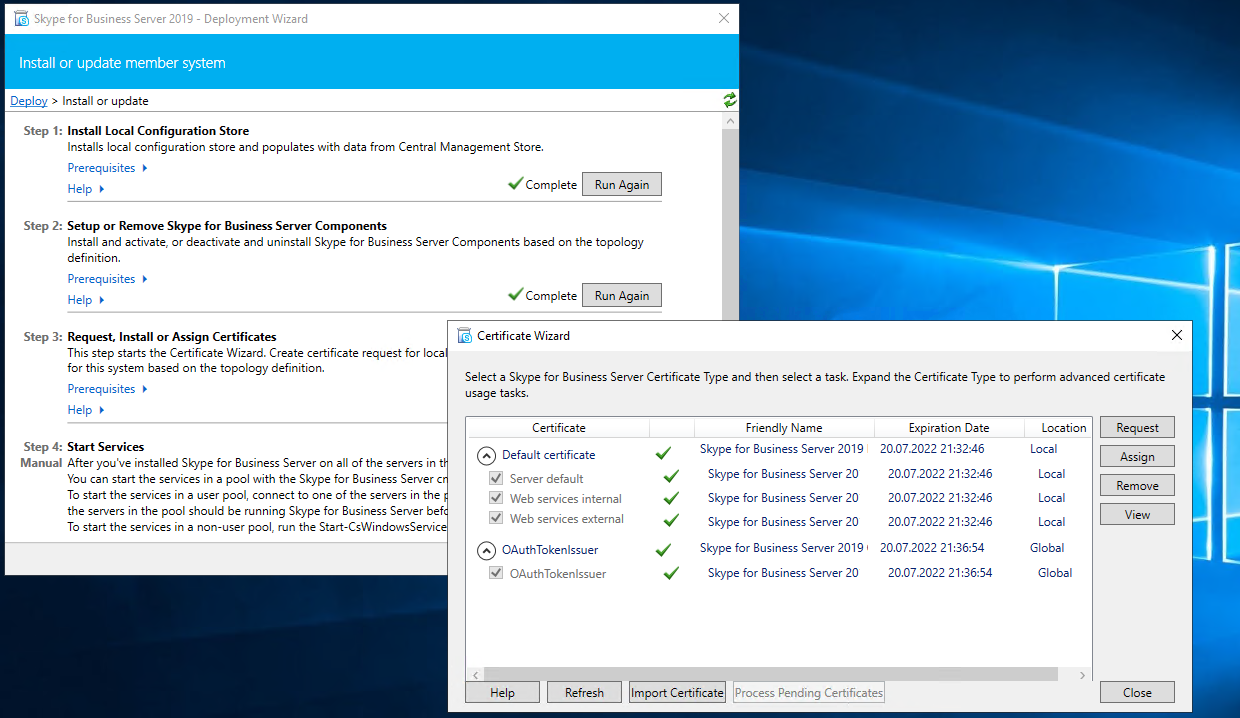

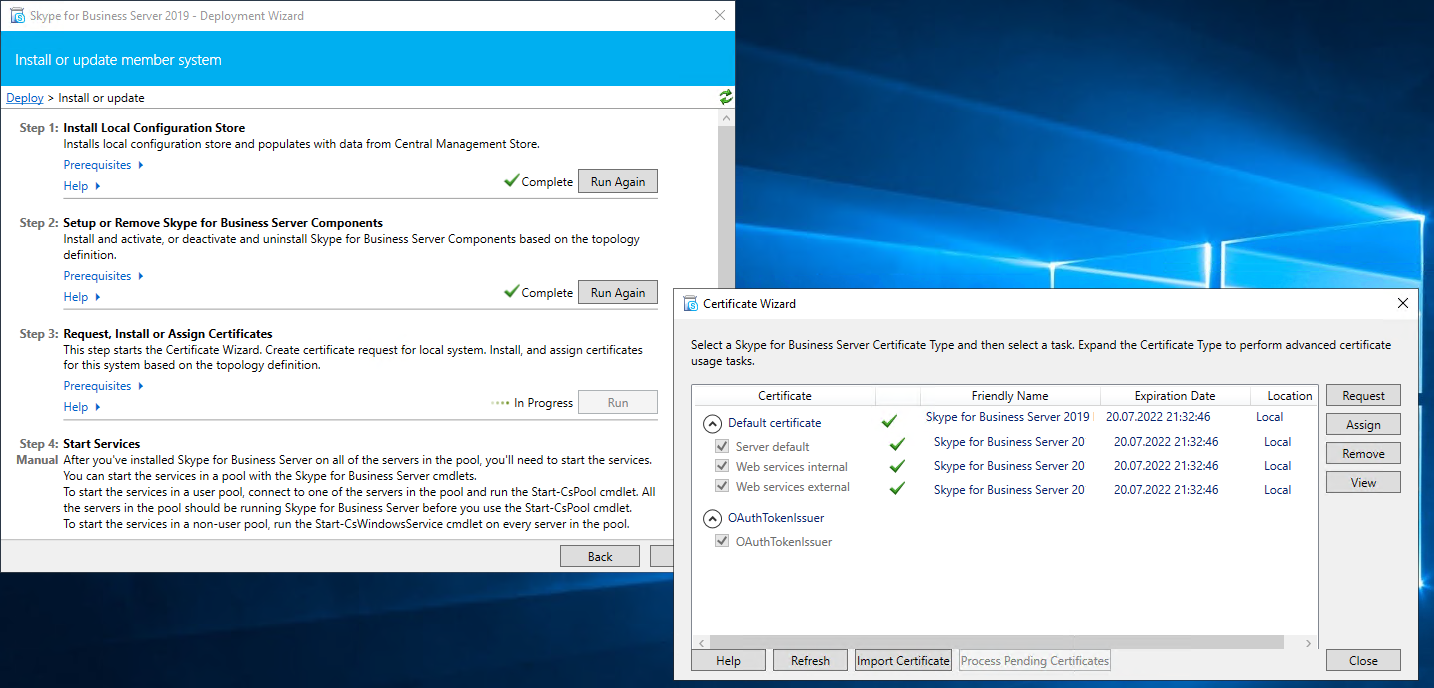

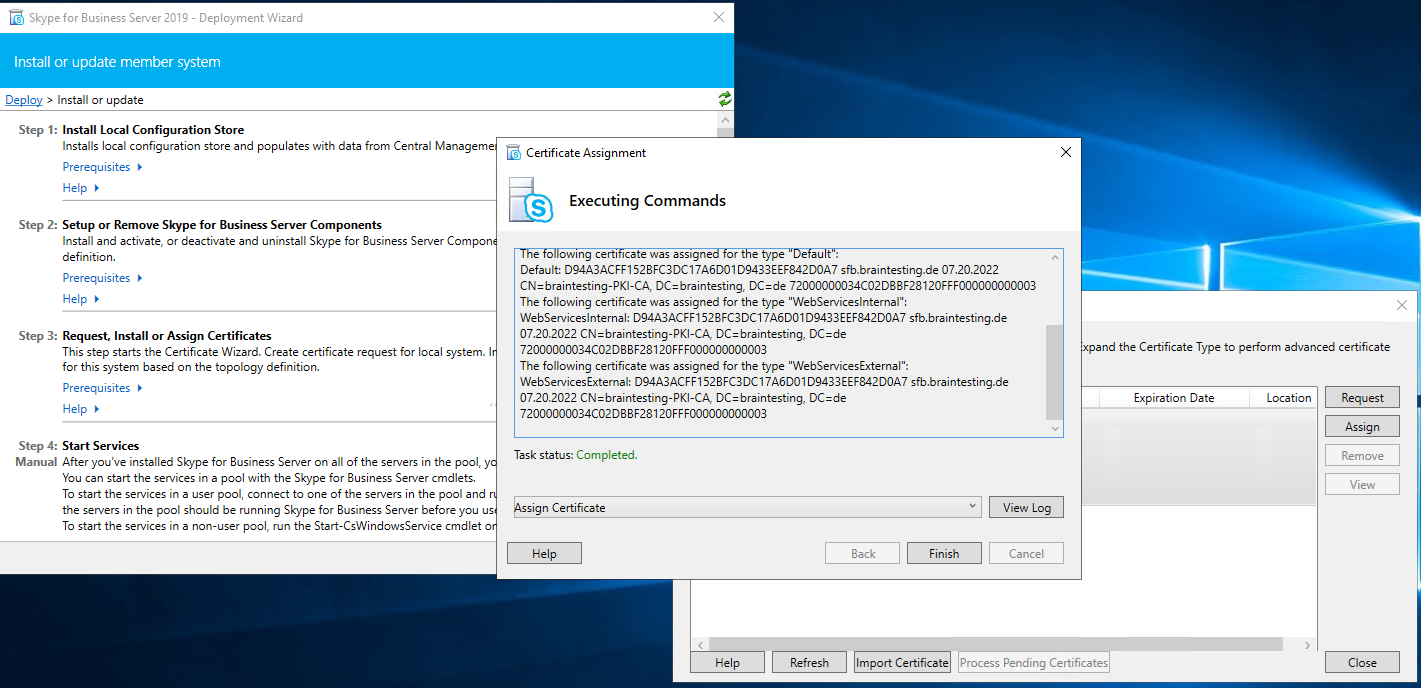

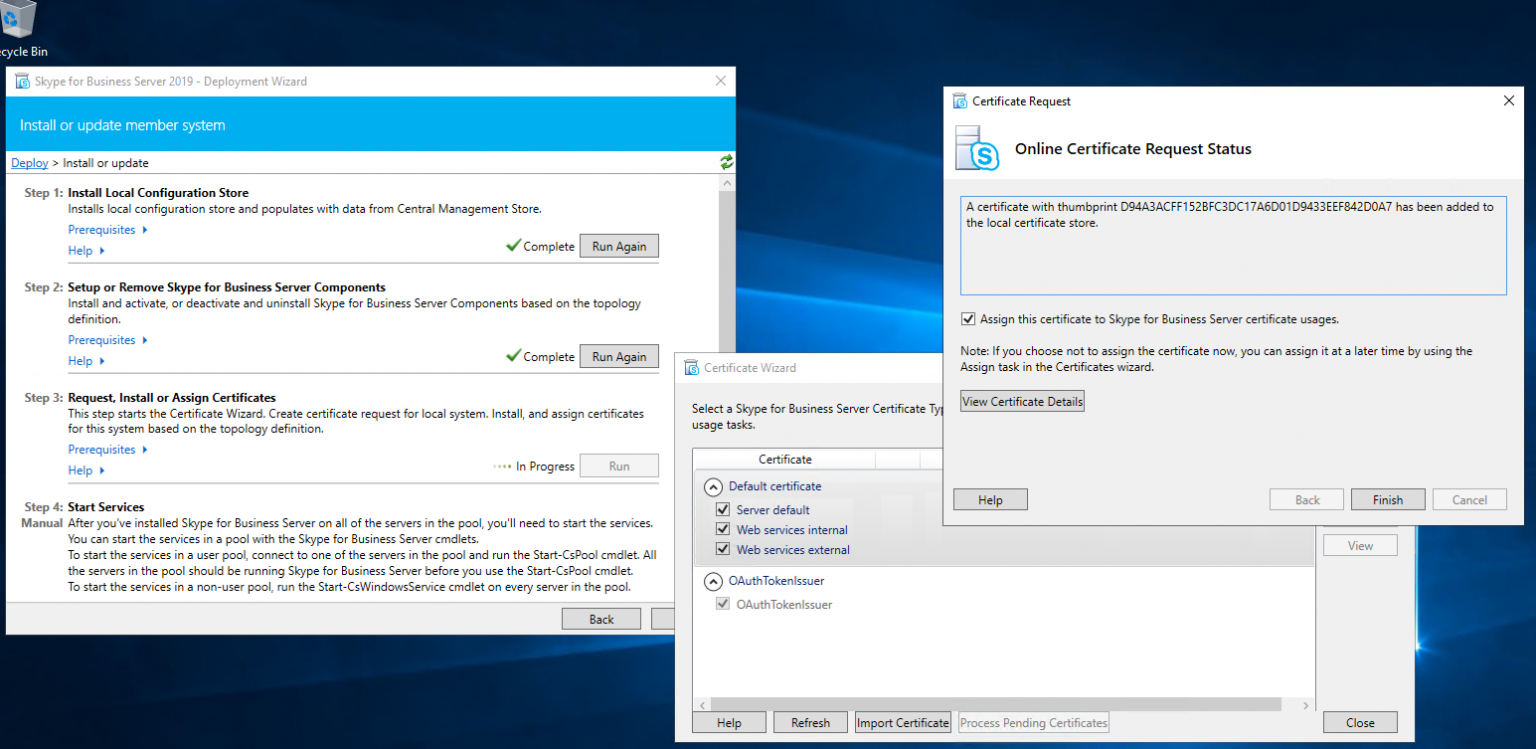

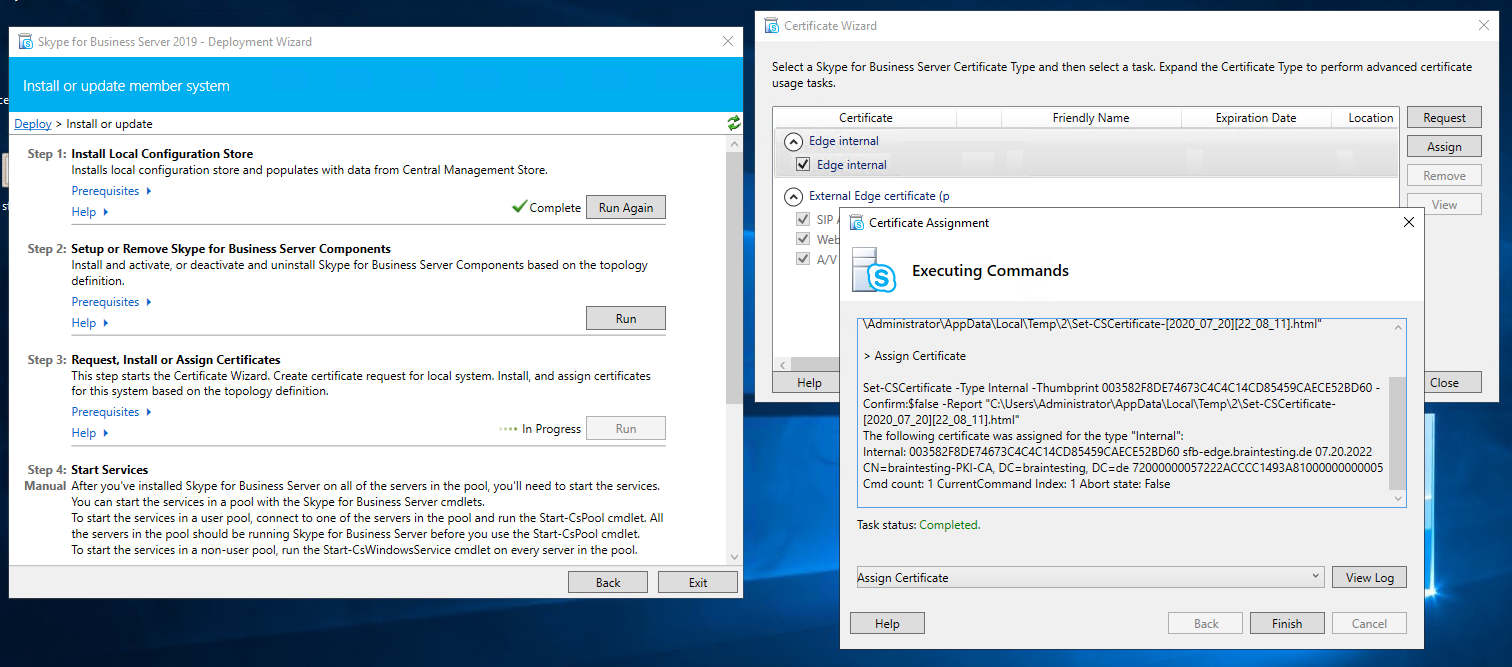

Next step is to request and assign a certificate for the front end server from our internal PKI.

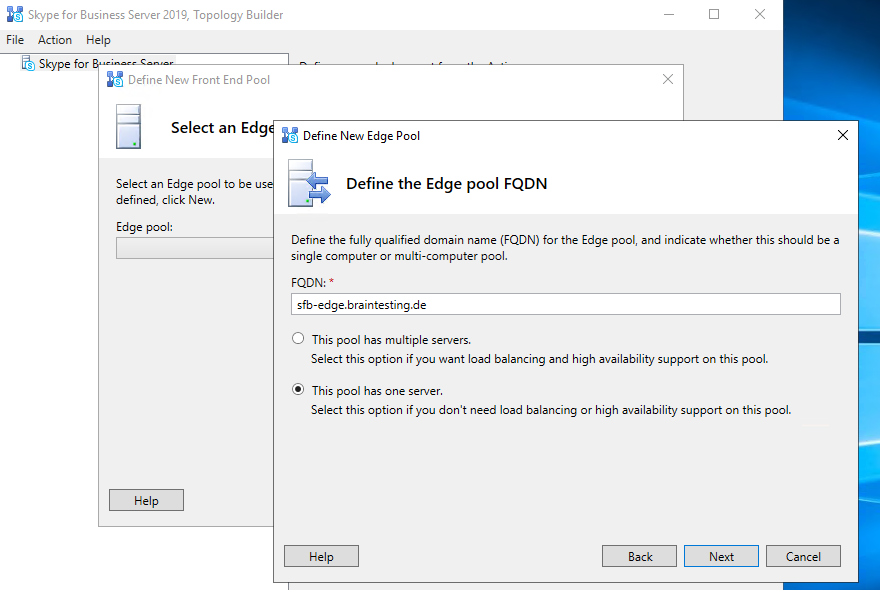

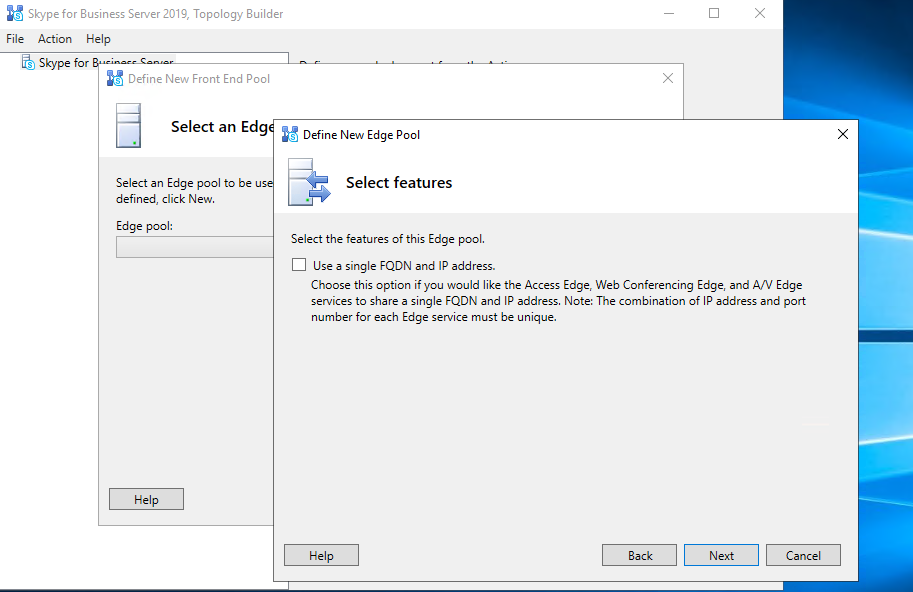

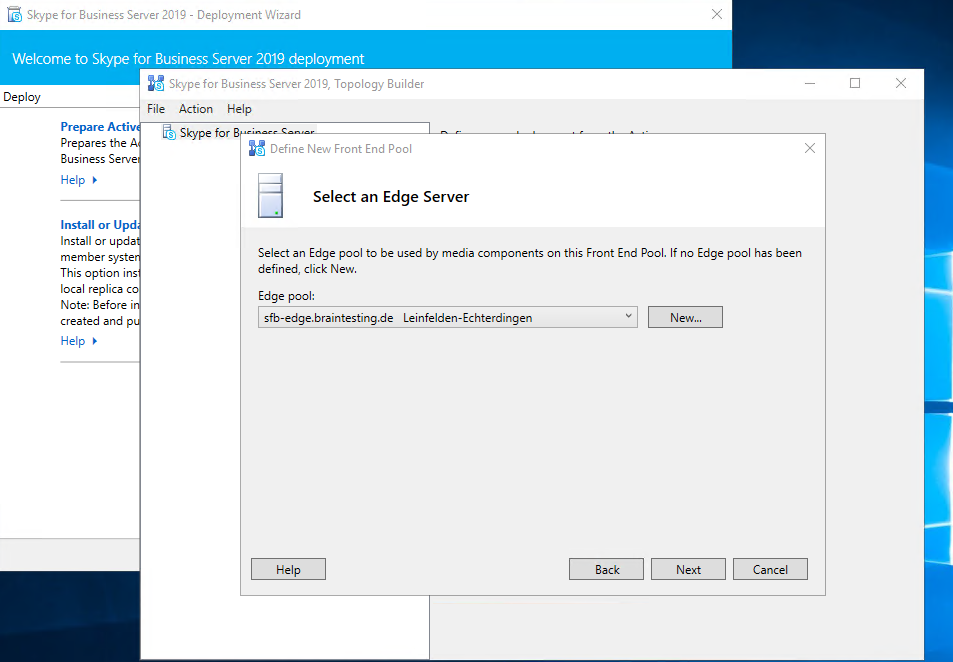

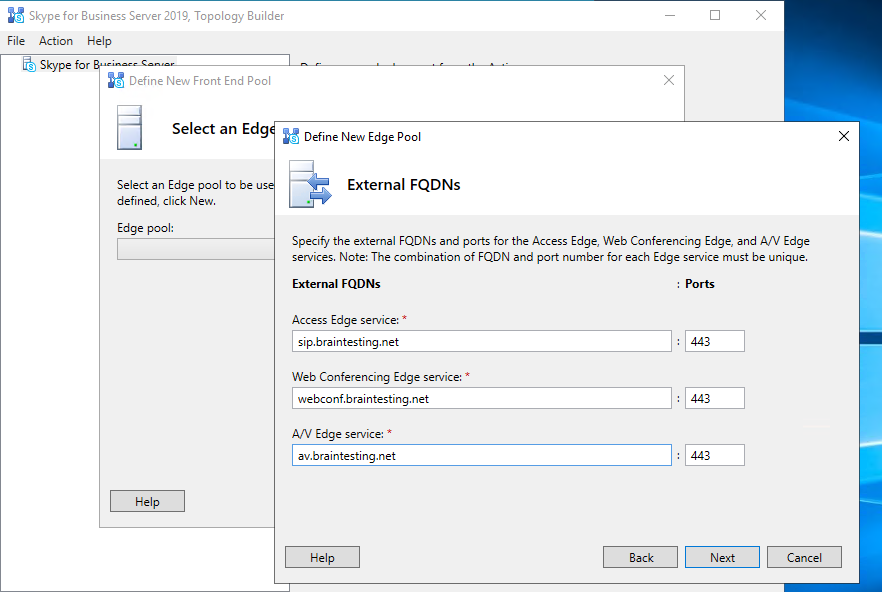

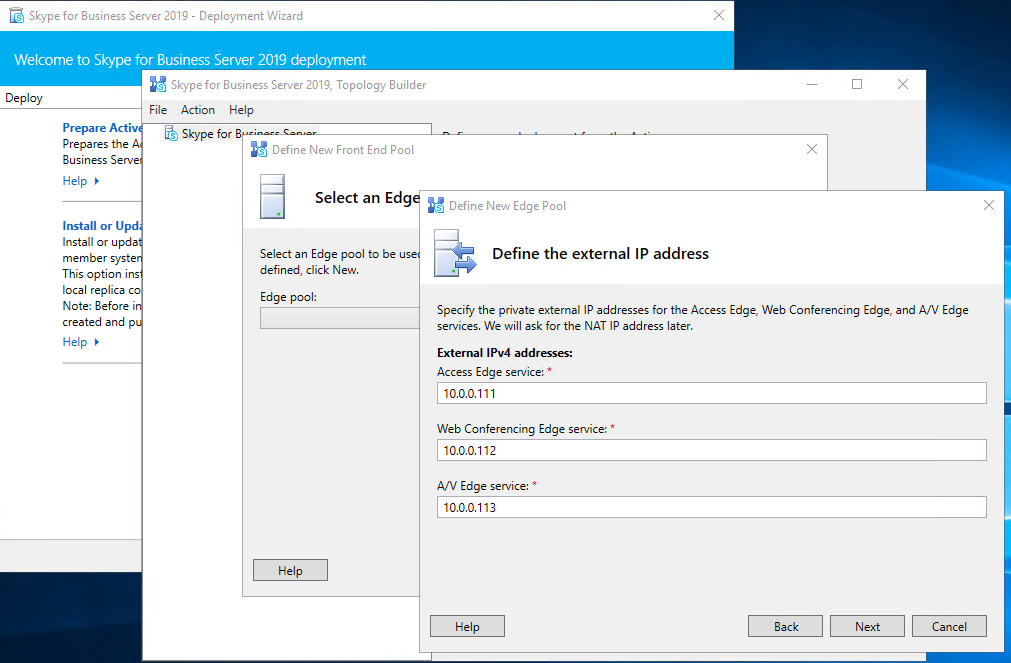

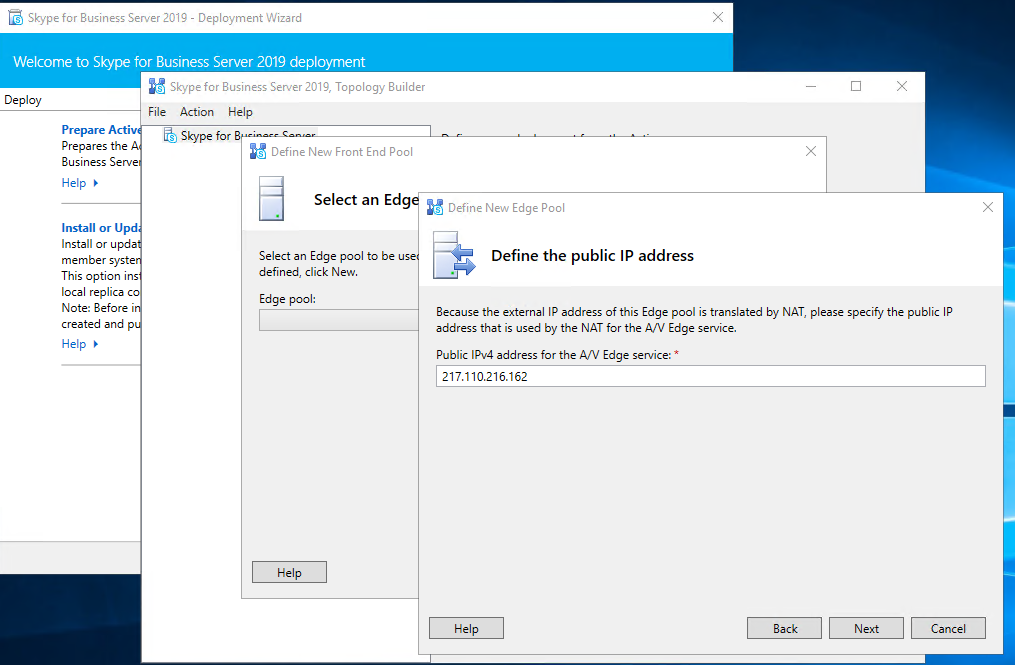

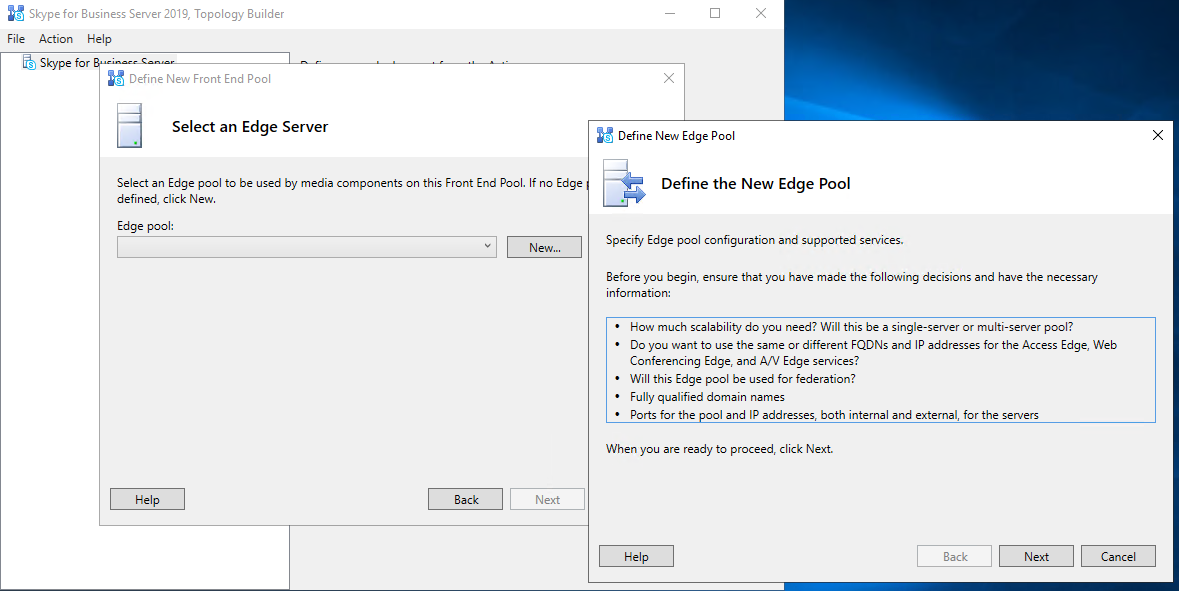

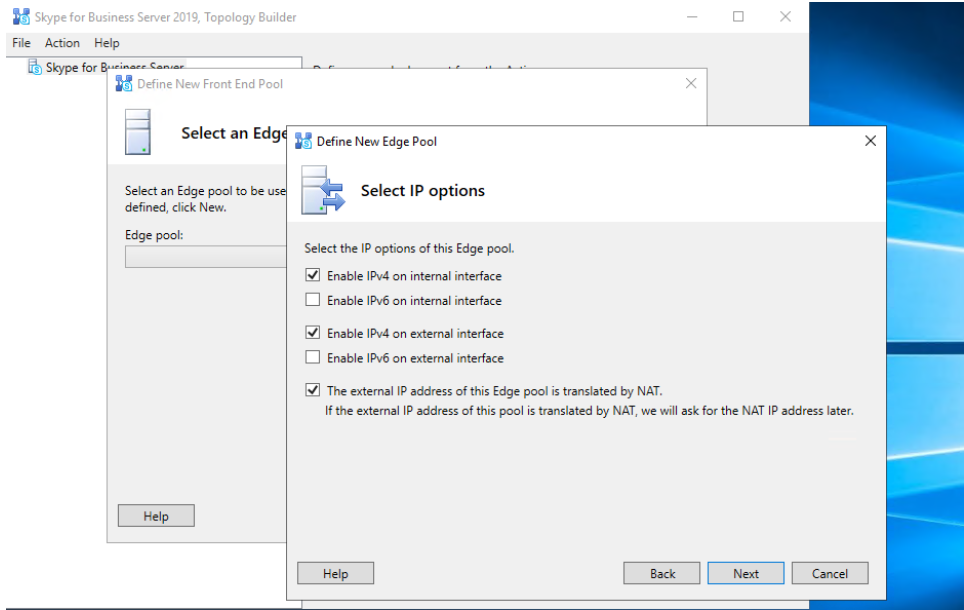

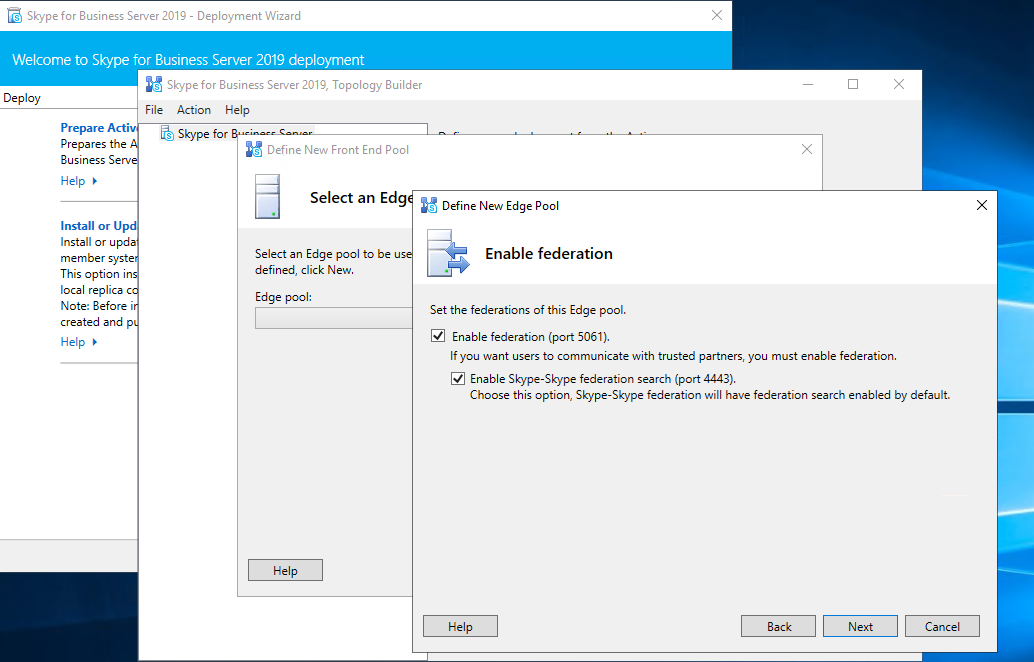

Now we can deploy the Edge Server Role
Powershell script to install Skype for Business prerequisites on Edge Server:
Add-WindowsFeature RSAT-ADDS, NET-Framework-Core, NET-Framework-45-Core, NET-Framework-45-ASPNET, Web-Net-Ext45, NET-WCF-HTTP-Activation45, Windows-Identity-Foundation, Telnet-Client
EDGE Server Network Configuration
I use 3 external adapters and one internal for the edge role. The 3 external will use NAT behind the front firewall of the perimeter network.
- Set only on the external edge adapter on which federation is enabled an gateway to the internet
- On the internal adapter set a route to the internal network
- netsh interface ipv4 add route <IP address/mask> “Interface Name” <IP Gateway> metric=266 | metric optional

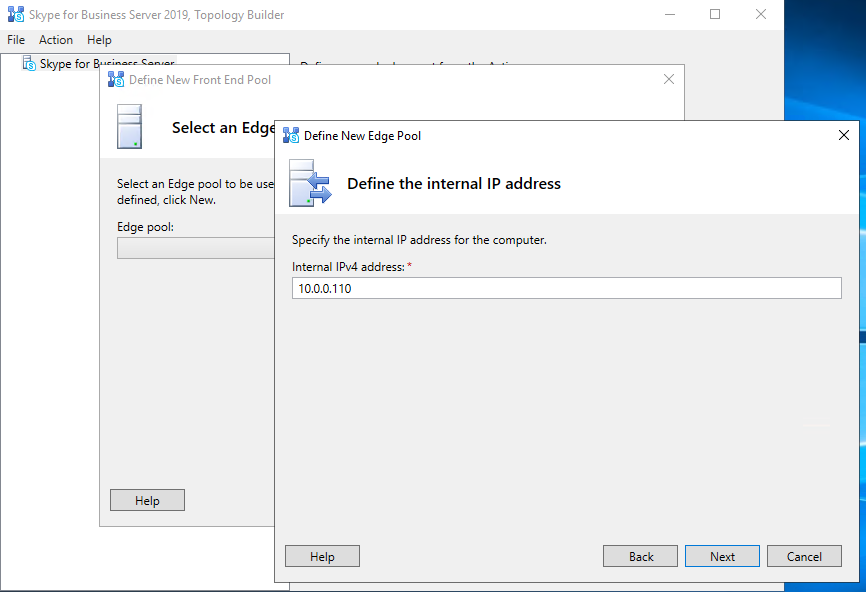

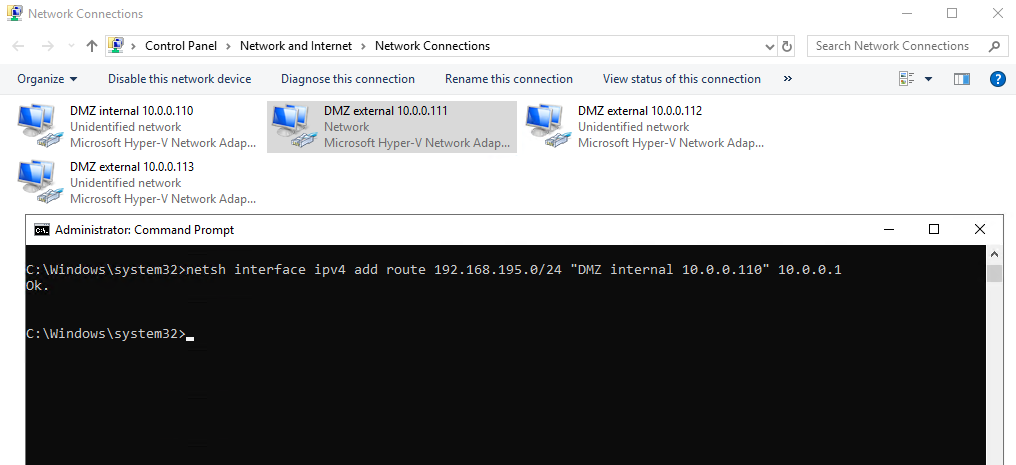

Add internal adapter DMZ internal 10.0.0.110 a static route to the internal lan.

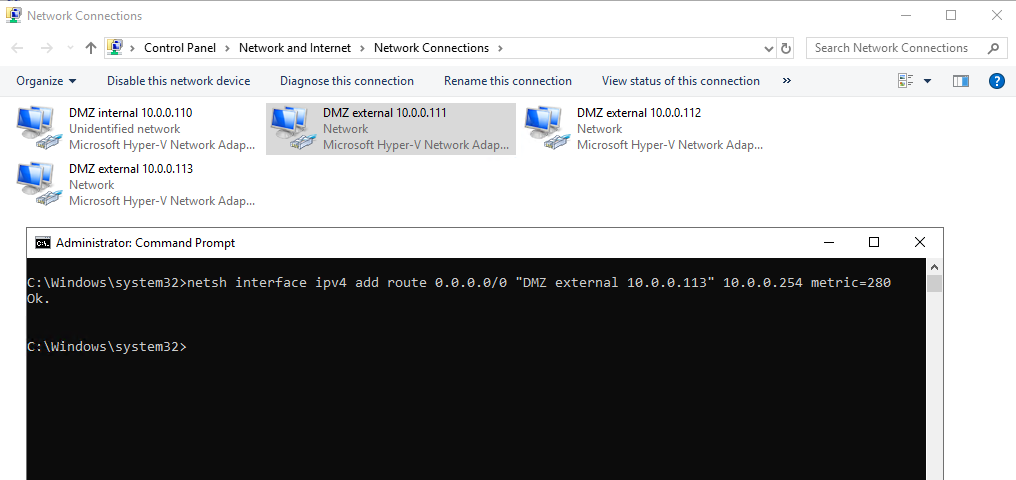

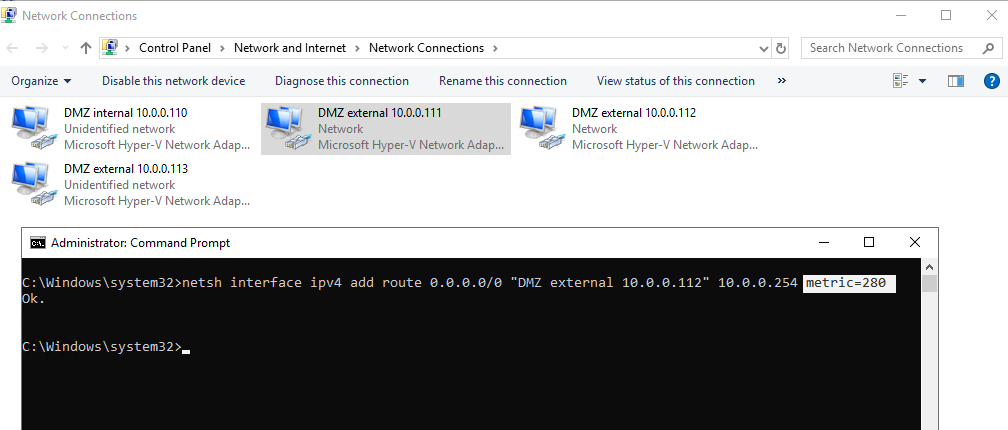

For the other both external adapters (webconferencing and a/v) set a static route to the internet with a metric which is higher than the federation adapter with the gateway, in my case higher than 271.
So you can be sure, that initiating internal outbound sip signalling traffic from the client, will flow through the Edge Servers access adapter for federation and sip traffic.

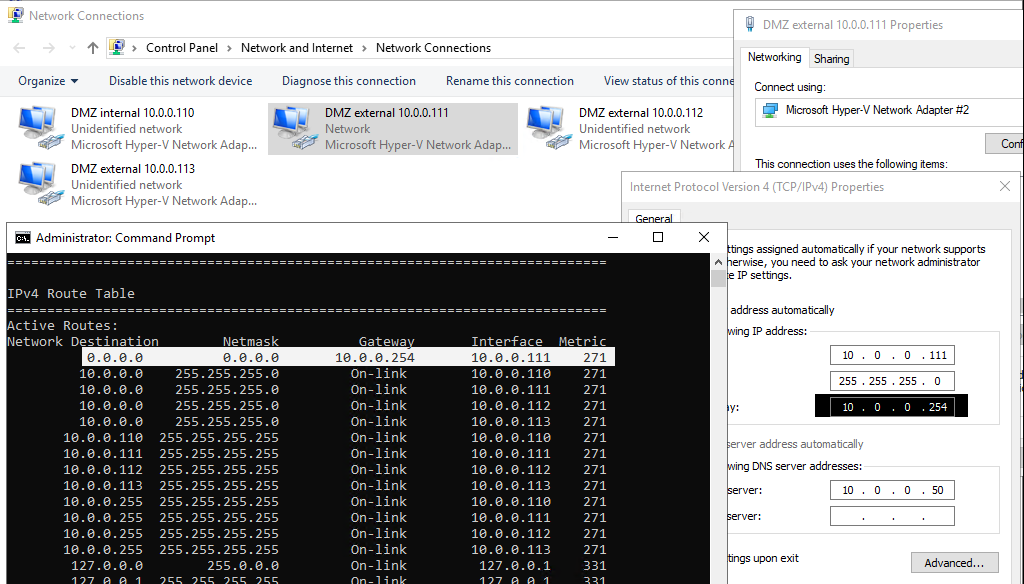

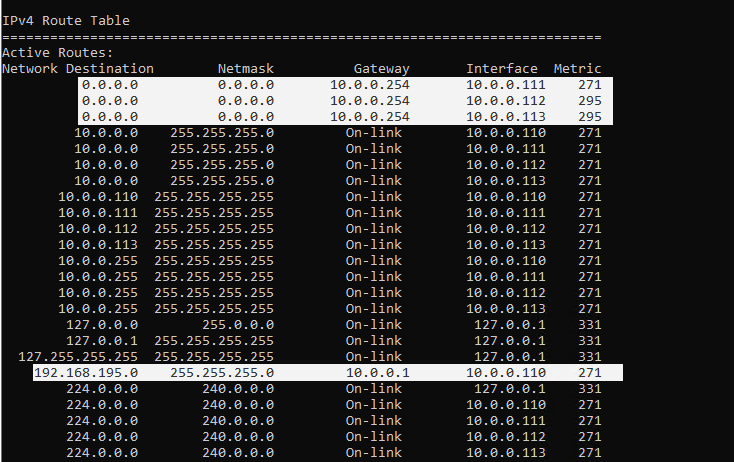

So you can see that traffic to the internet will flow through my access edge adapter with the lowest metric 271.
What’s behind this lowest metric for access edge adapter?
The potential pitfalls with this solution is that any of the three interfaces could be used for initiating outbound communications. Checking the route table afterwards will show that all three defined routes have the same metric value. For responses to inbound traffic this is not a problem as the Strong Host model will dictate that the response leaves the interface it entered on and external firewalls will see the return traffic from the same IP and routing should be fine. But for initiating an outbound connection, as can happen when an internal users tries to start an IM conversation with a Federated or PIC user, needs to travel out of the Access Edge interface to match the traffic profile that firewalls would be configured for (TCP 5061 outbound). Typically this works usually since the Access Edge was the first configured external interface, but because the Strong Host Model does not officially assign a primary interface then it seems to be a little luck or black-magic.
A way to force the Access Edge interface to act as a primary default route interface would be to leave the Default Gateway set on the interface properties, and then perform a route print to identify the Metric value of that route. Then instead of adding the same Default Gateway value on the other two interfaces simply create a static route from the command line and assign a metric of higher value to each of the other interfaces. This will insure that the Access Edge interface is used for initial outbound connections but when Strong Host attempts to reply to traffic from any of the 3 interfaces there is a defined route on each interface.

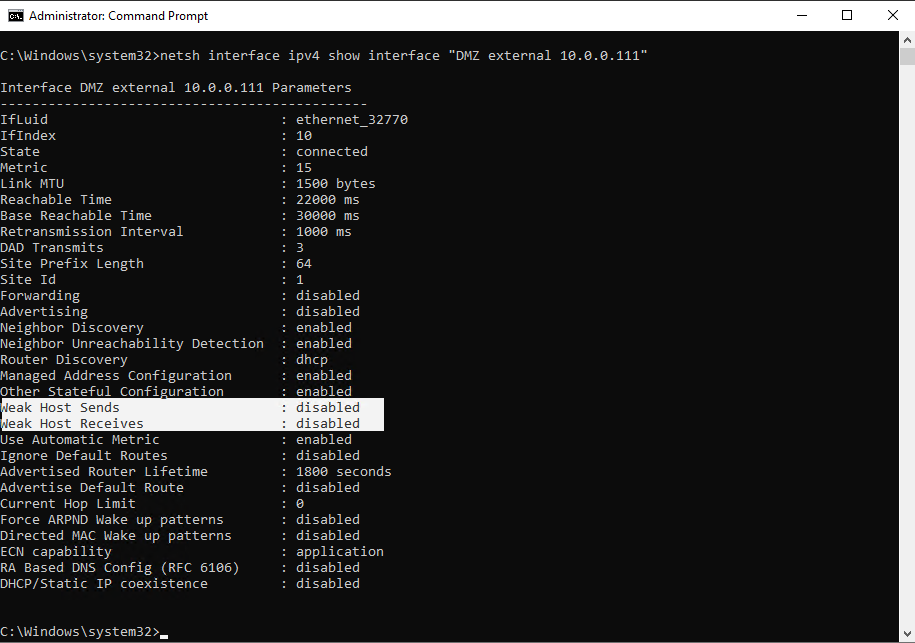

Strong Host Model
As we already created and published the Topologie with the Edge Role, we can now export the configuration with the Skype for Business Server Management Shell on the Front End Server.

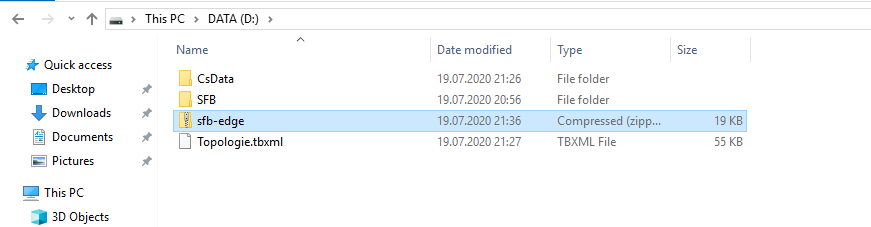

Export-CsConfiguration -FileName d:\sfb-edge.zip

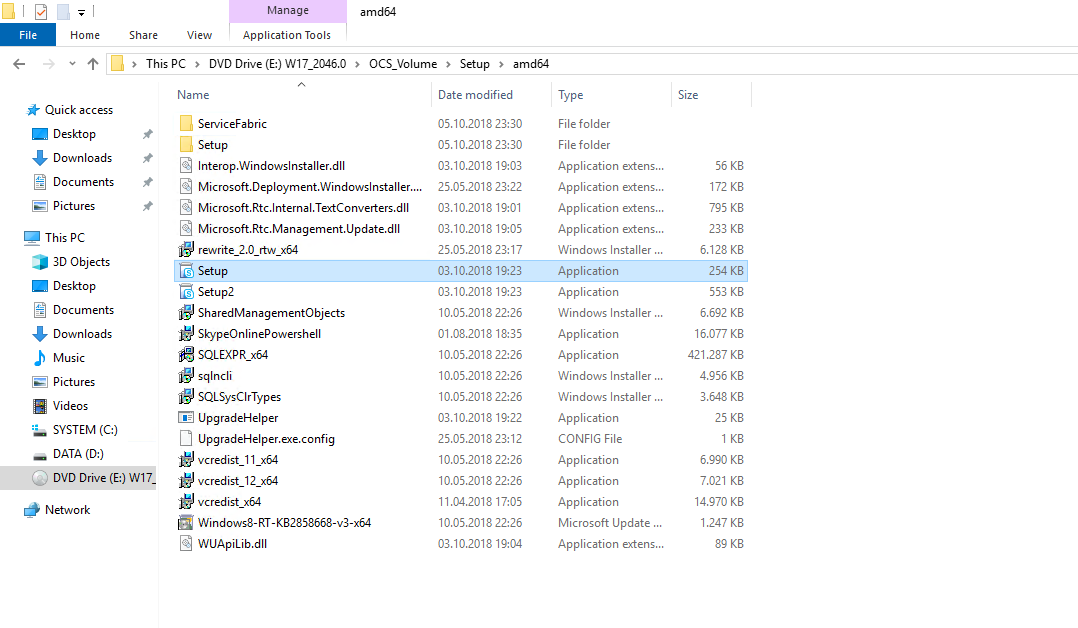

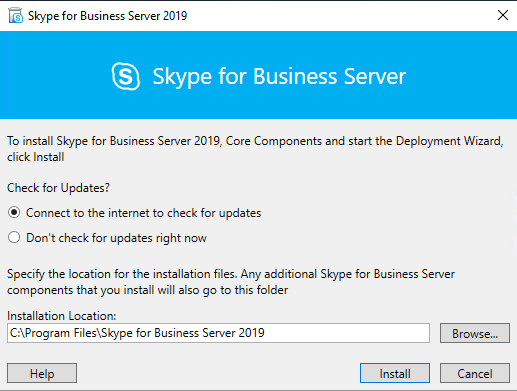

Now we can go to our Edge Server and start the Setup.exe from the install media.
Click on Install or Update Skype for Business Server System
Click on Install Local Configuration Store

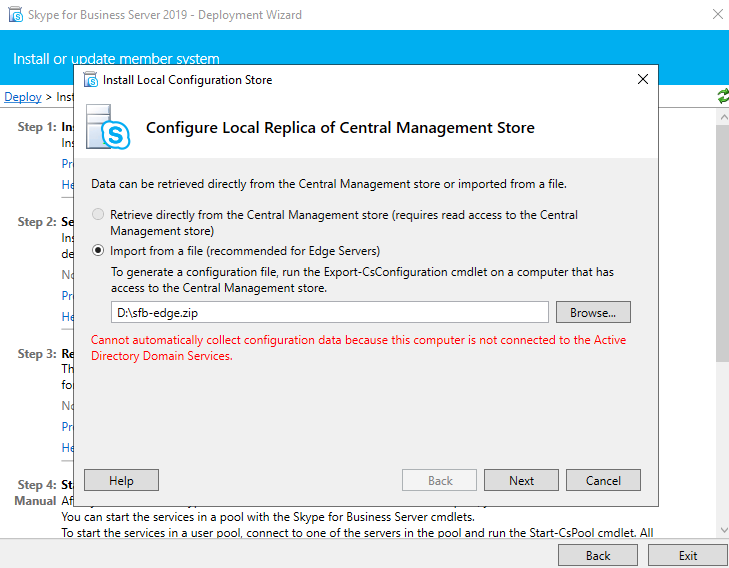

Select the option to import our previously exported ZIP file.

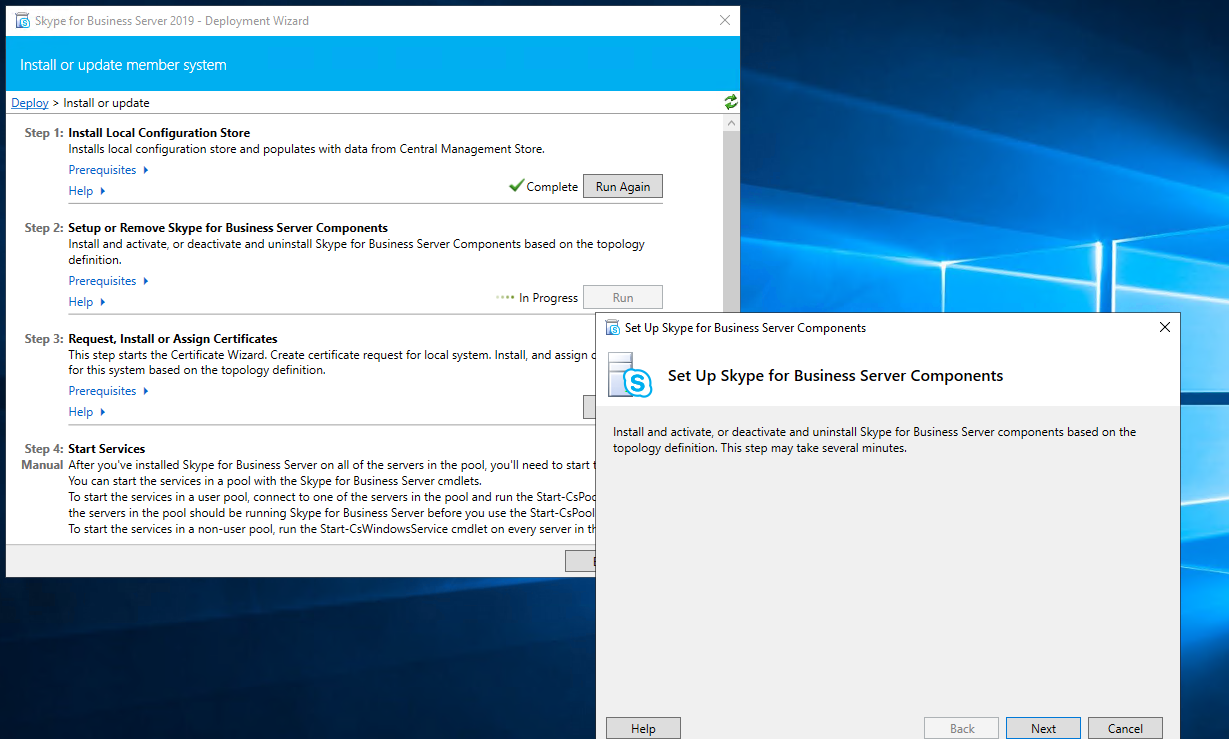

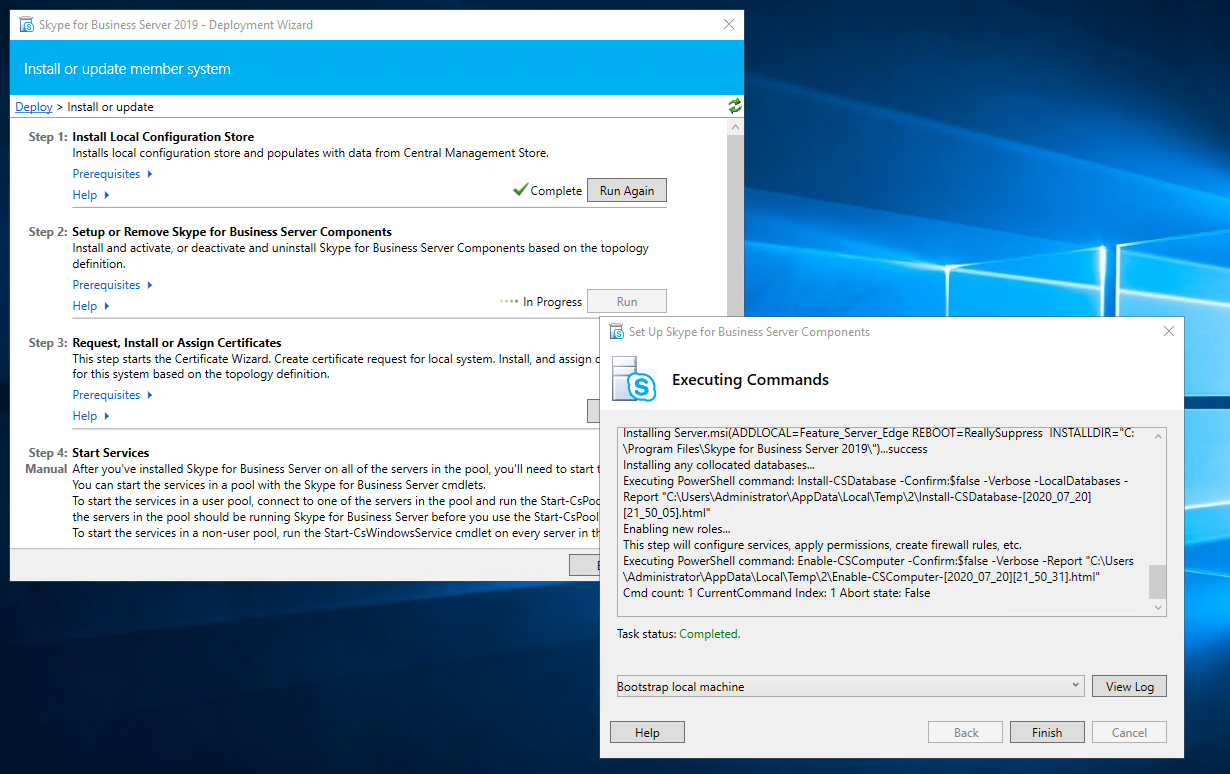

Now Setup or Remove Skype for Business Server Components

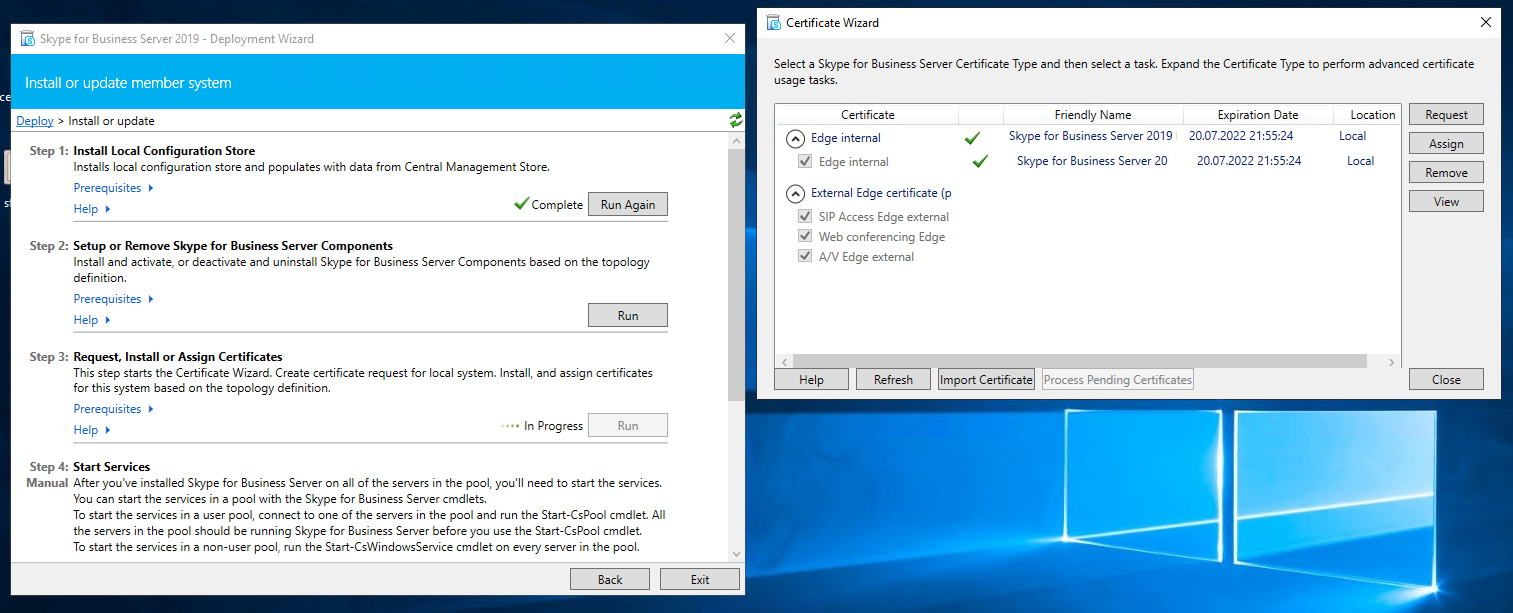

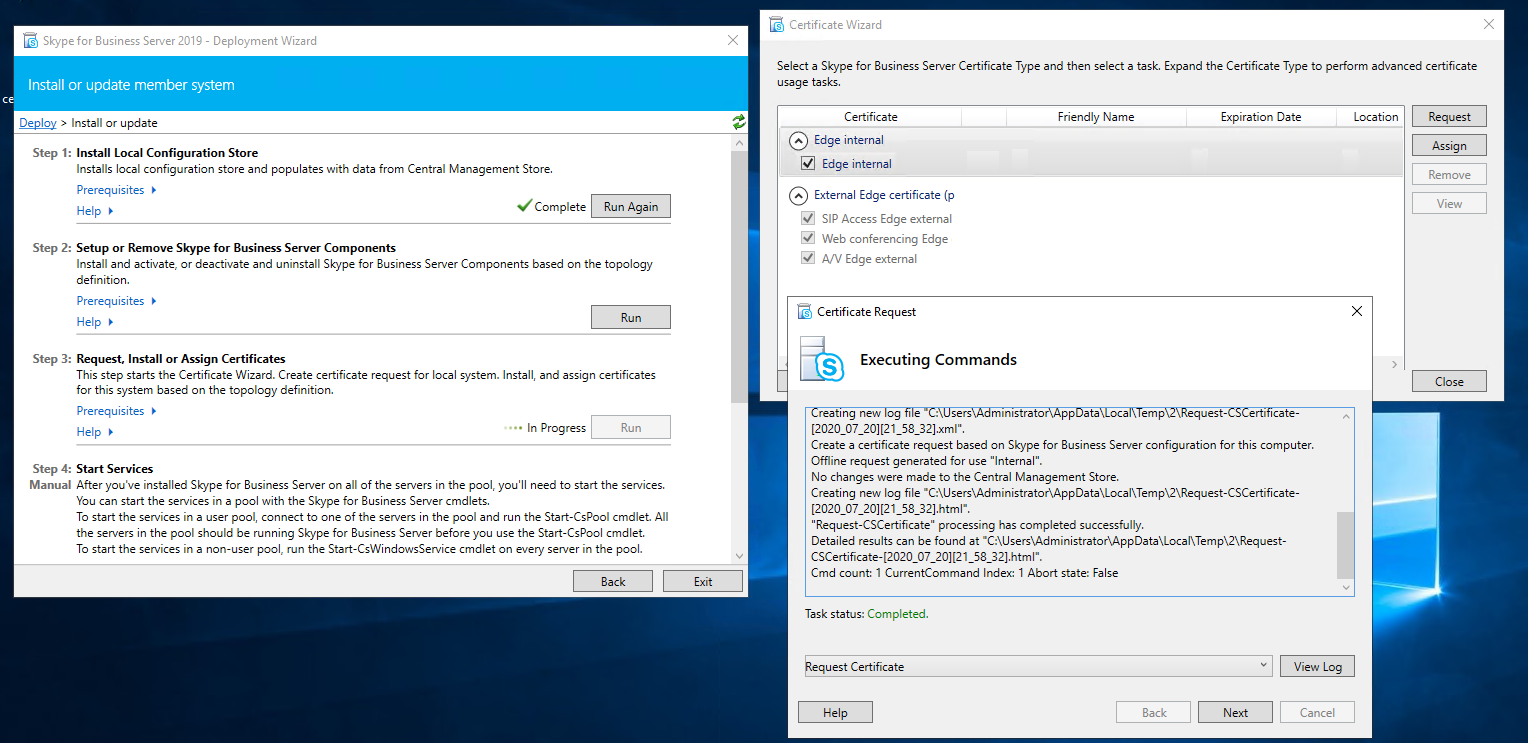

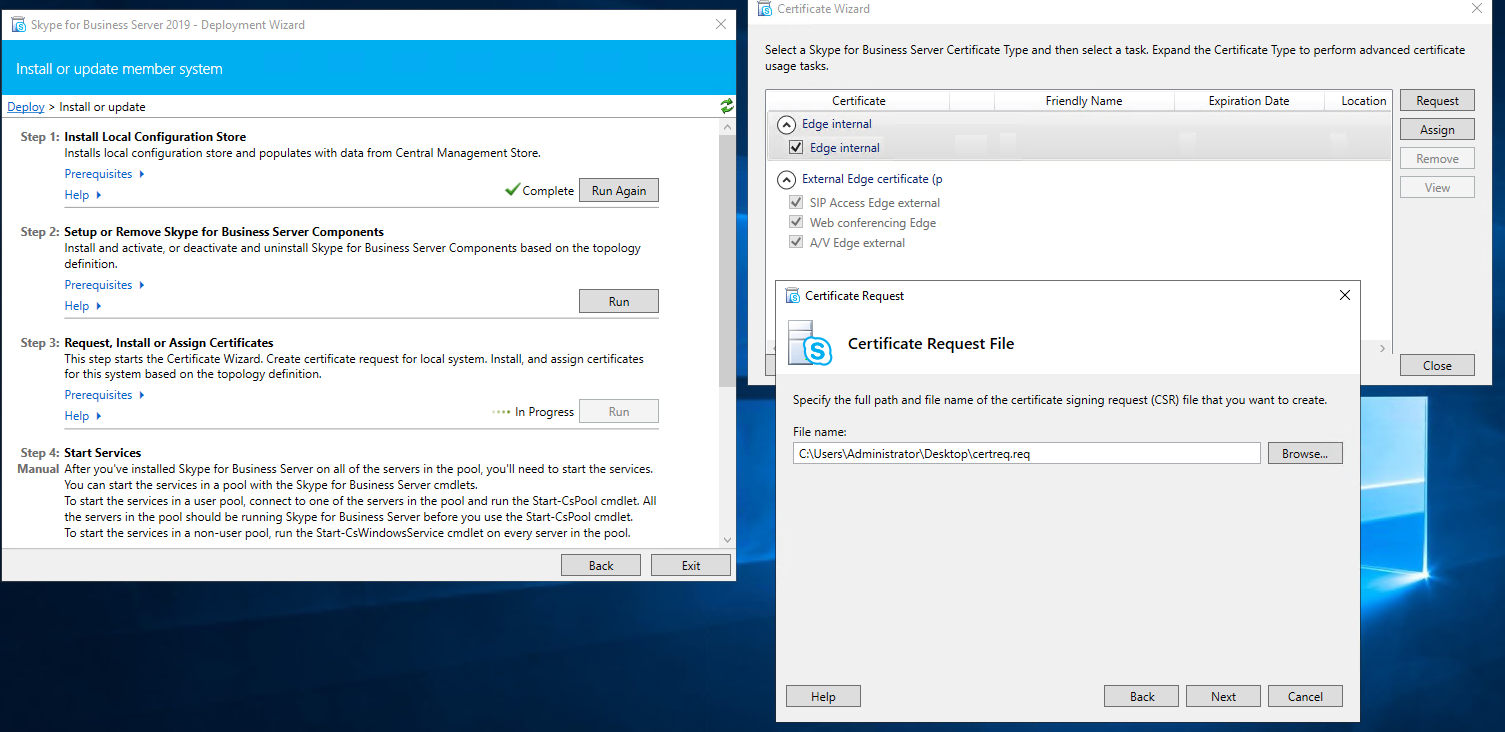

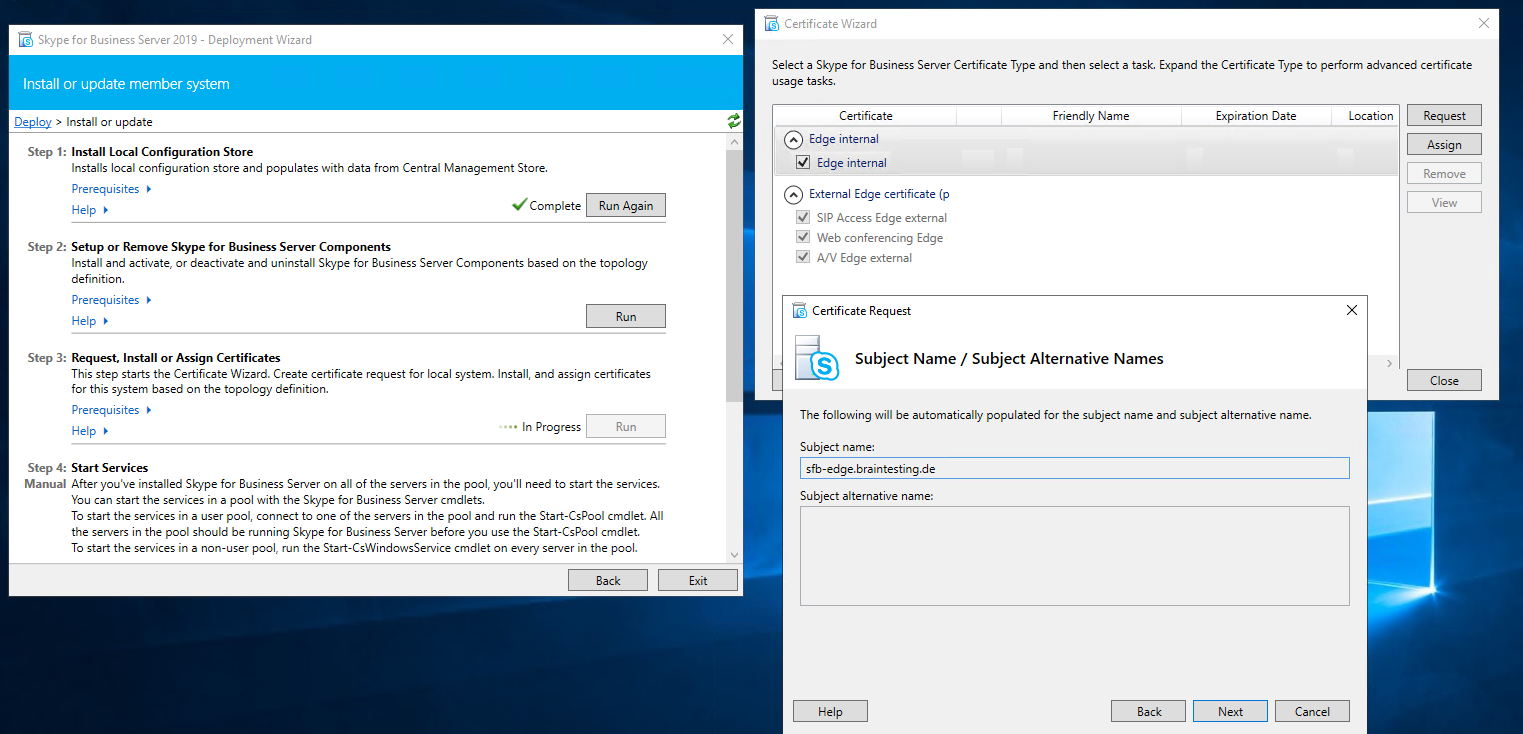

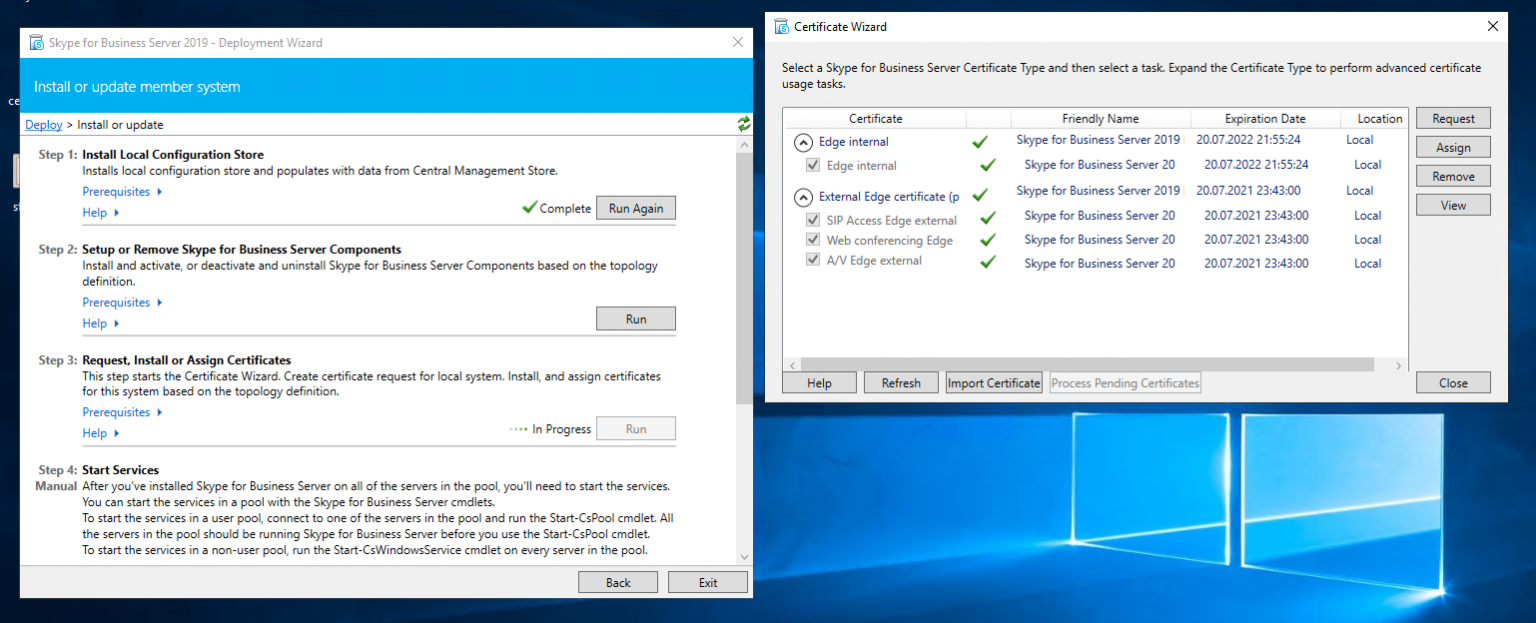

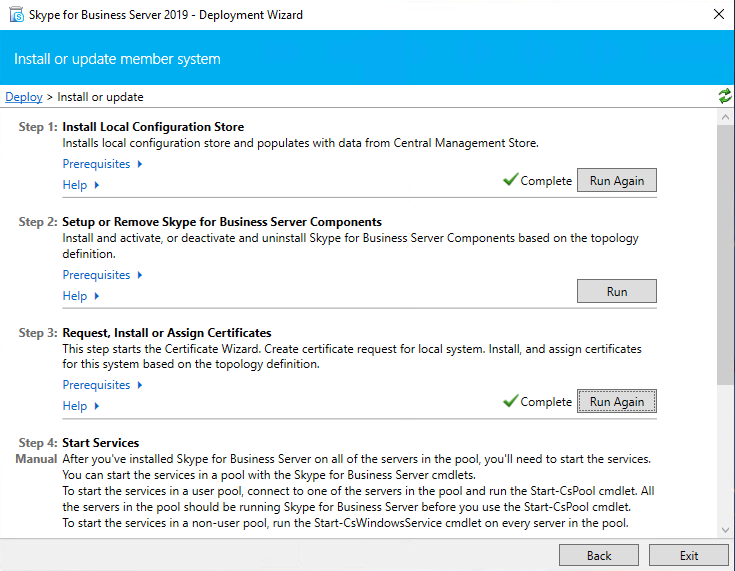

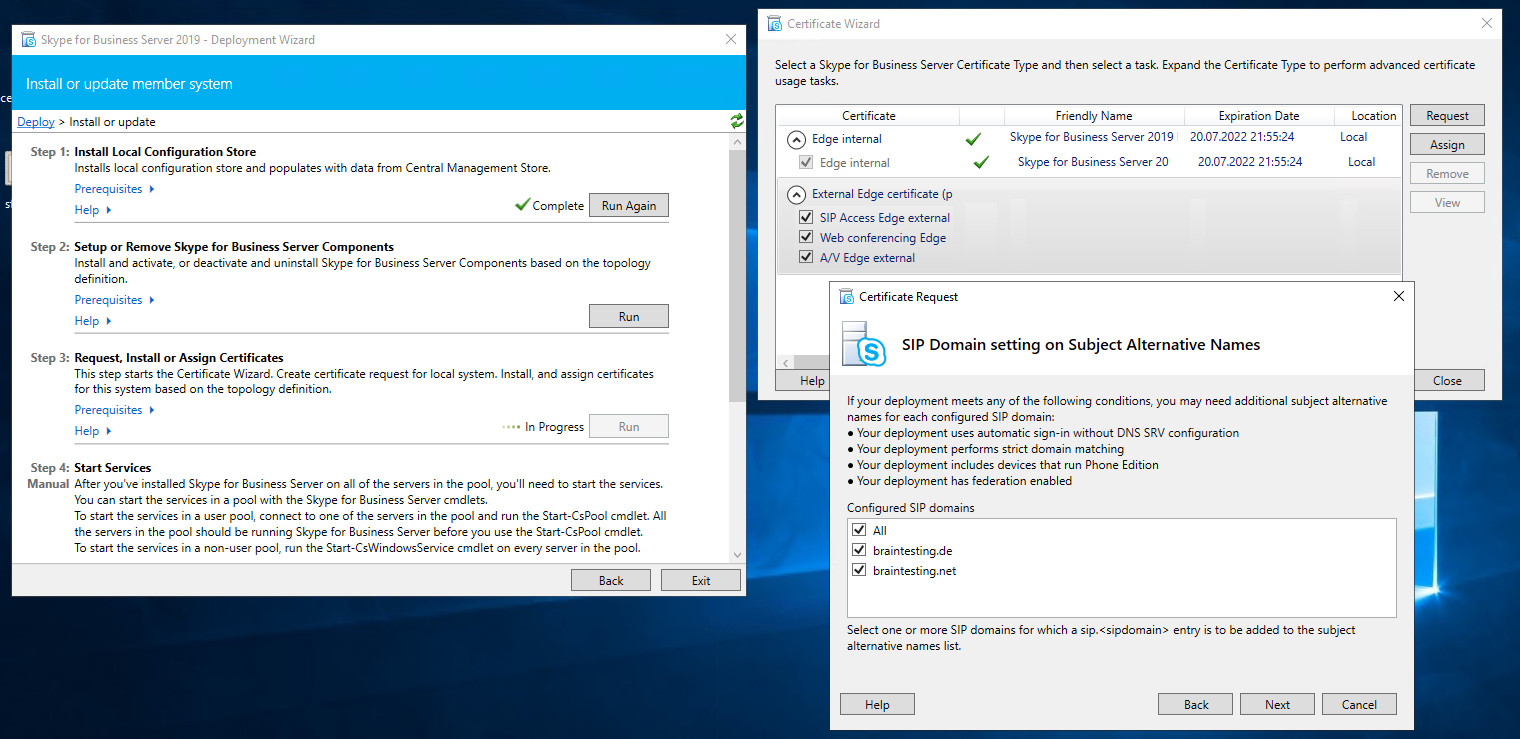

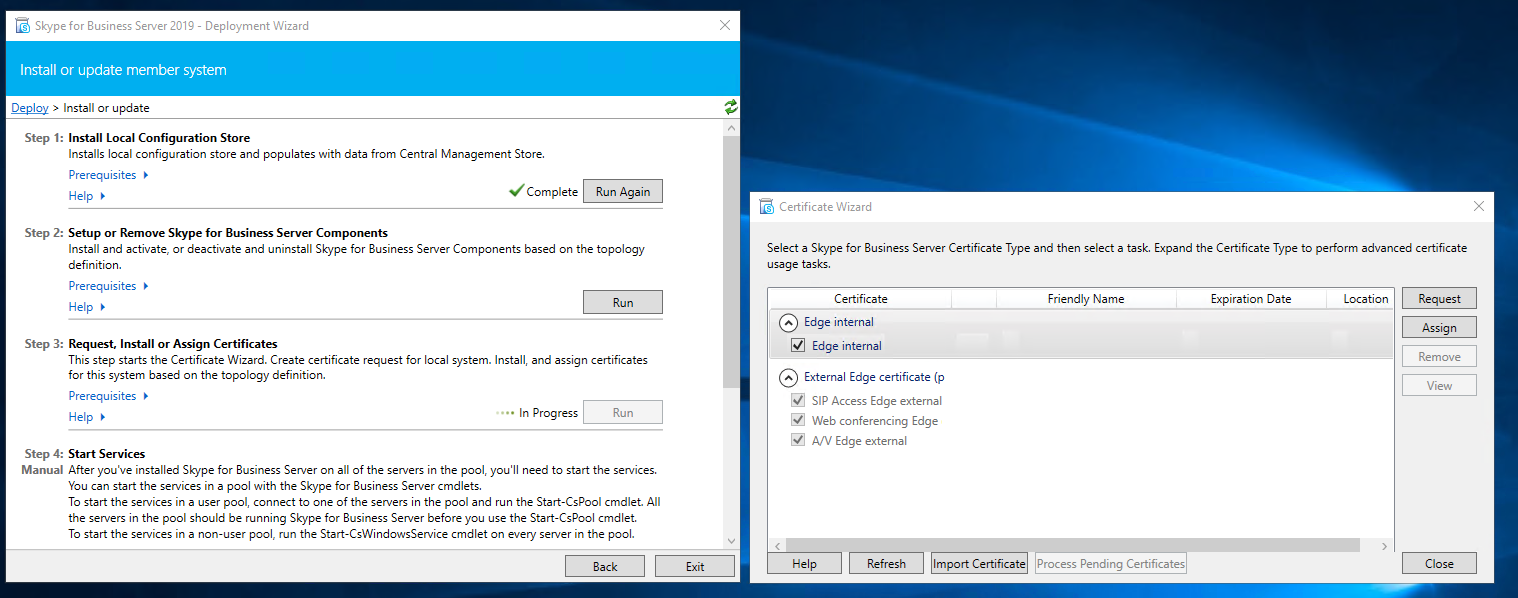

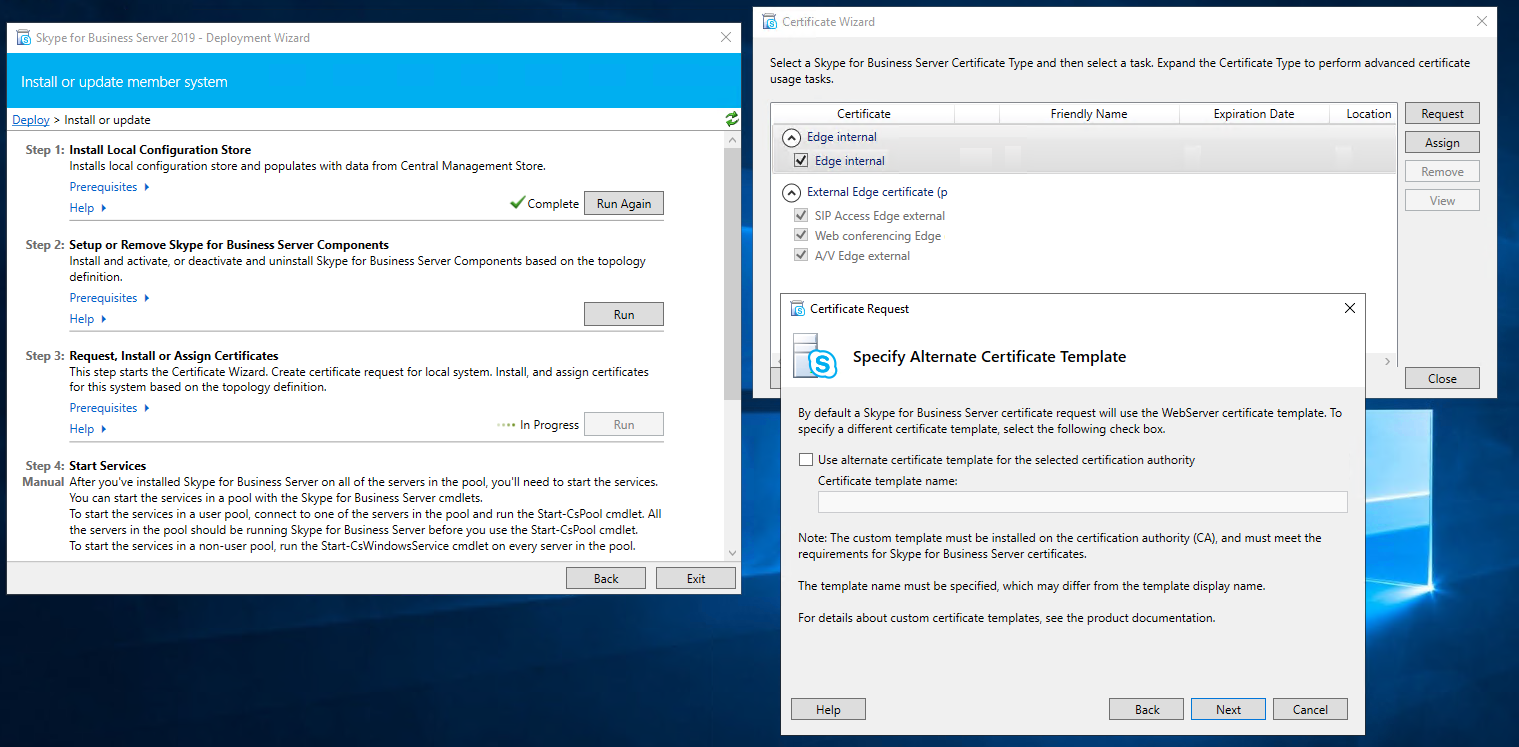

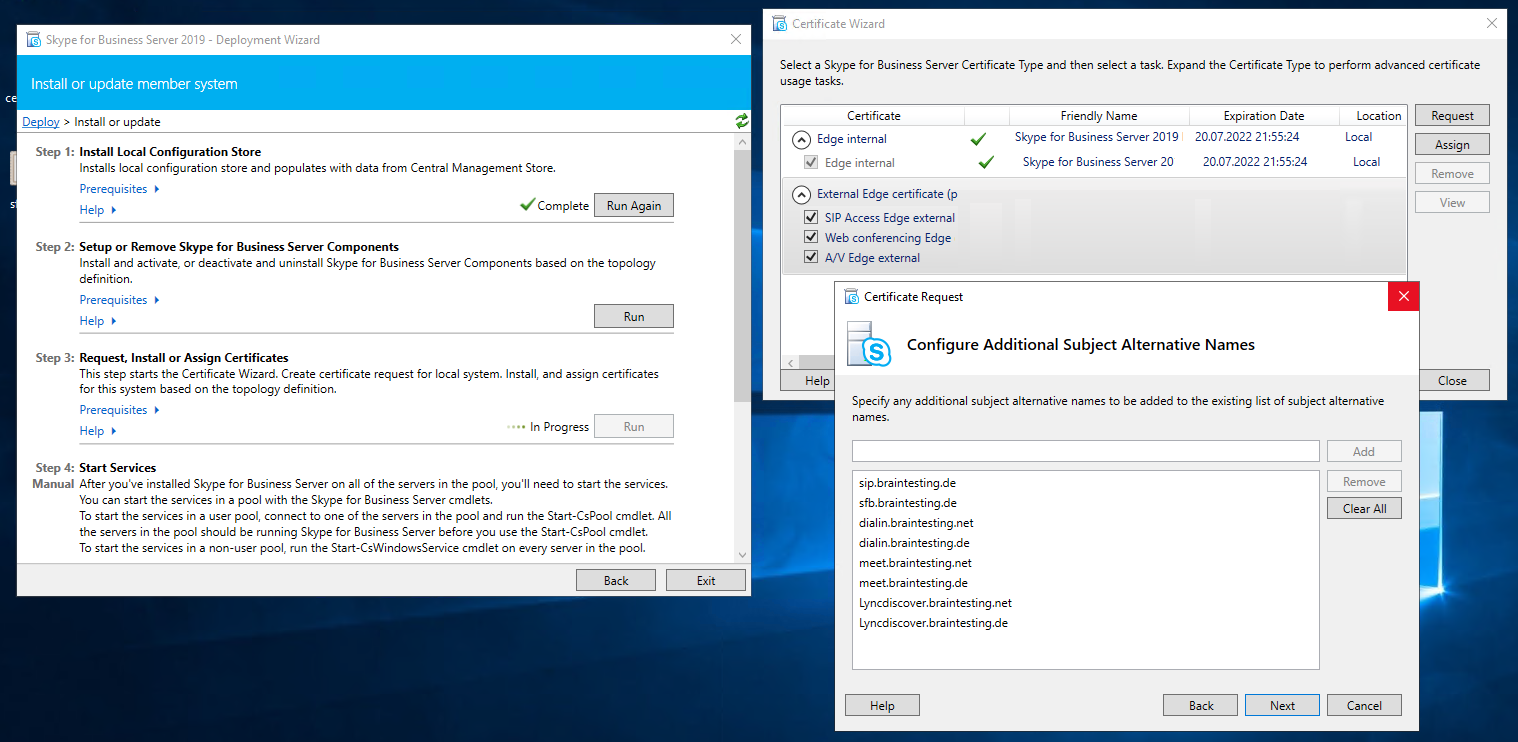

Now we can request and assign the certificates for the Edge Server.

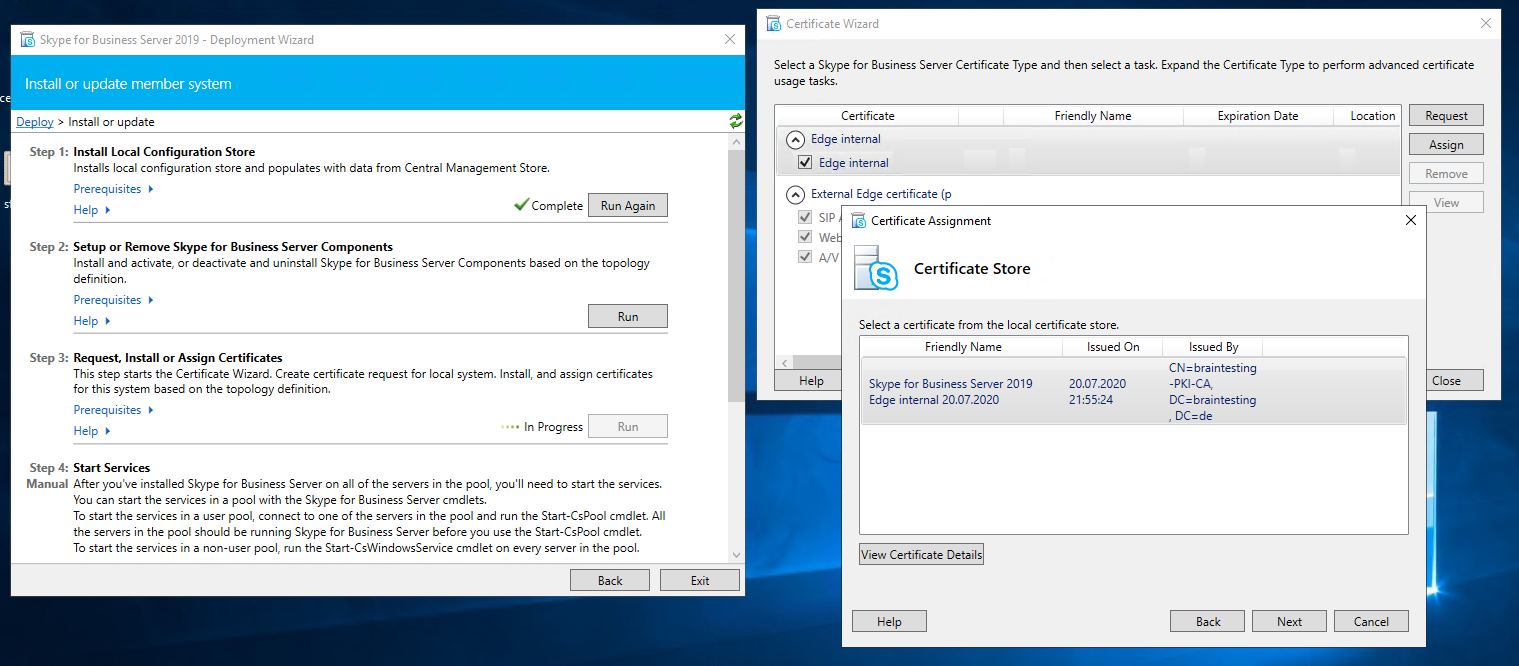

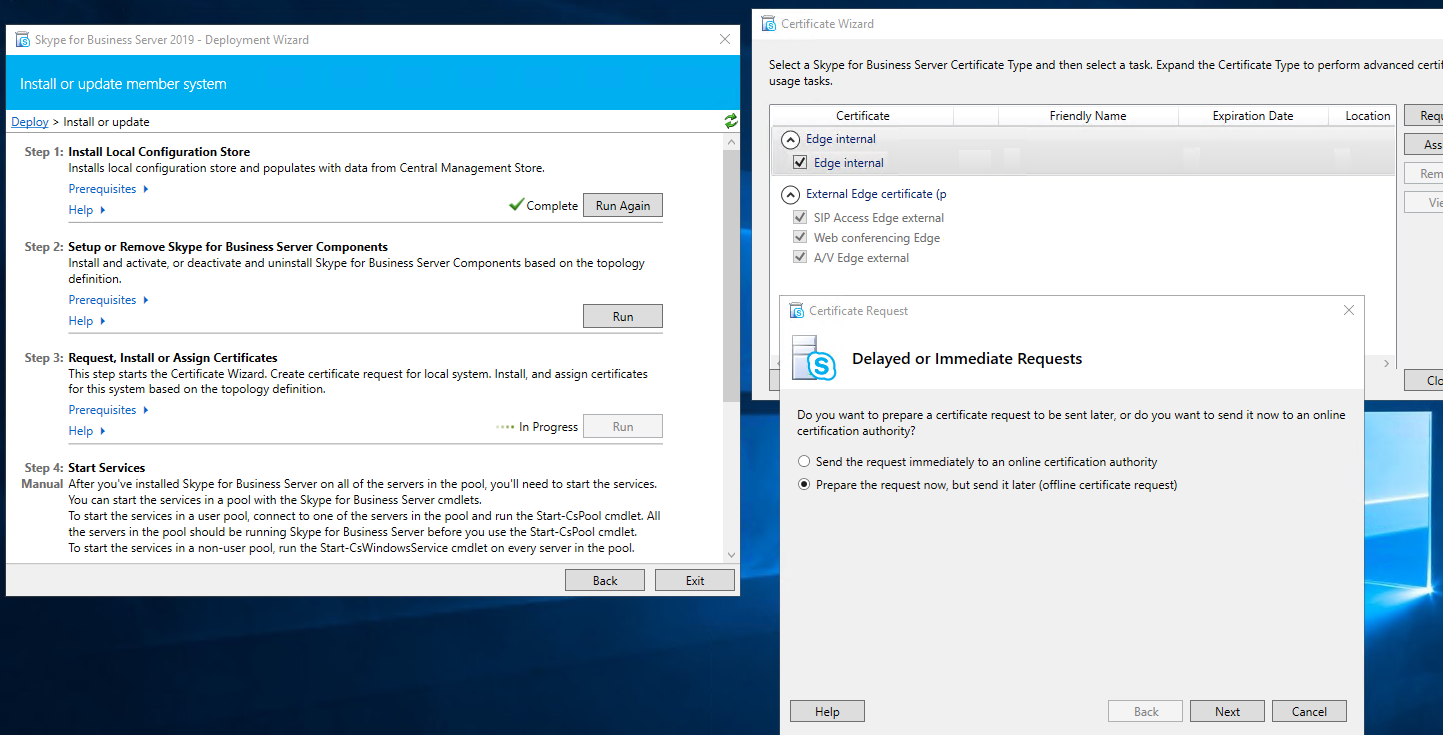

First for the internal Service we use a certificate from our internal PKI.

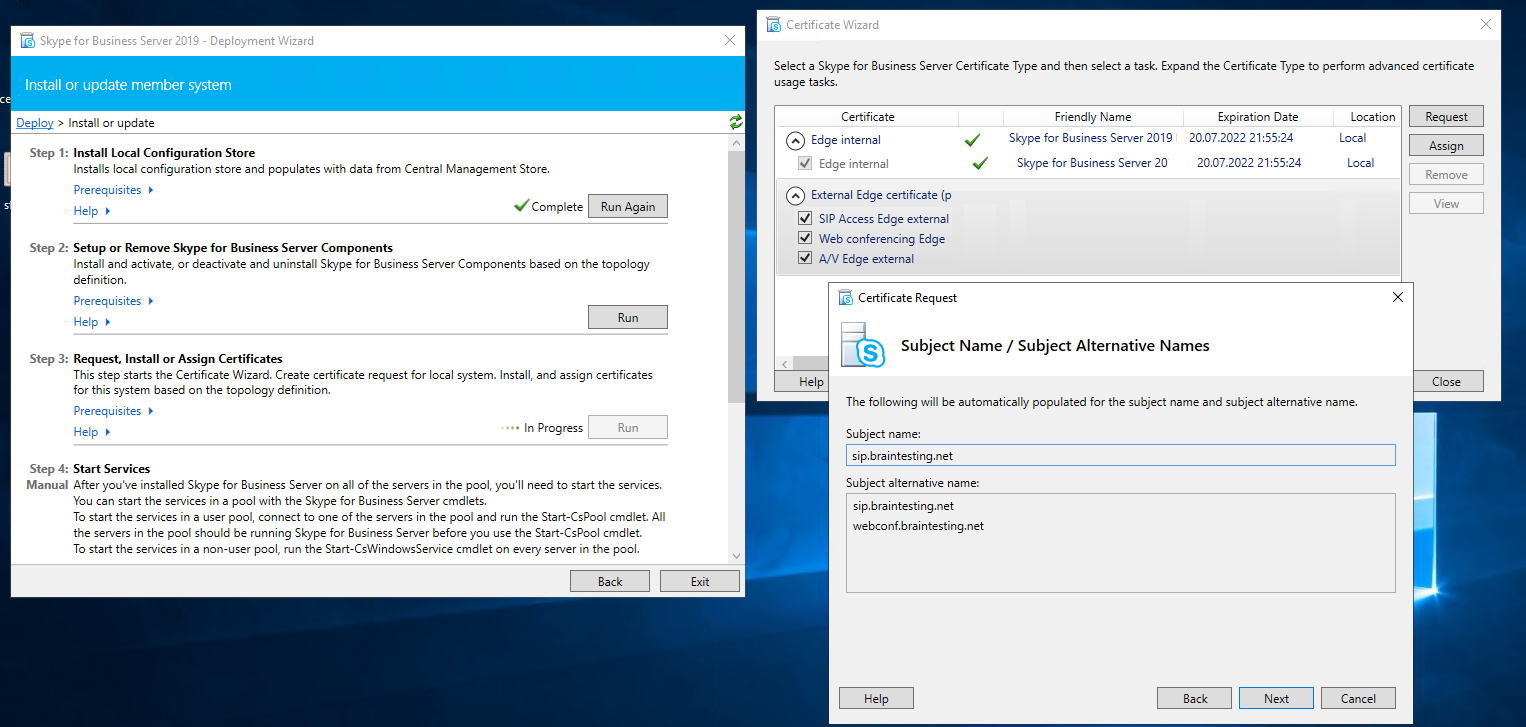

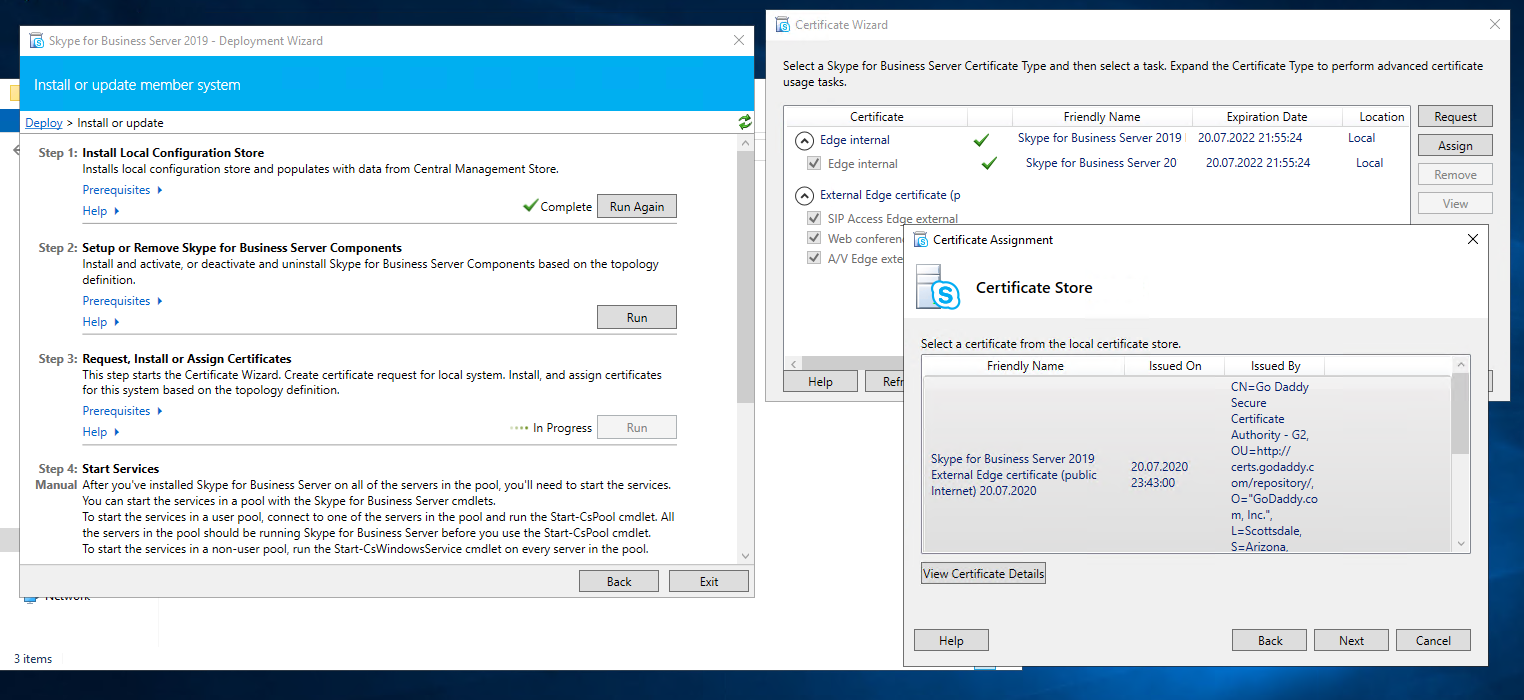

Now we request an public certificate for the external services from GoDaddy
Now you can start the services on Front End and Edge or better do an restart for both machines!

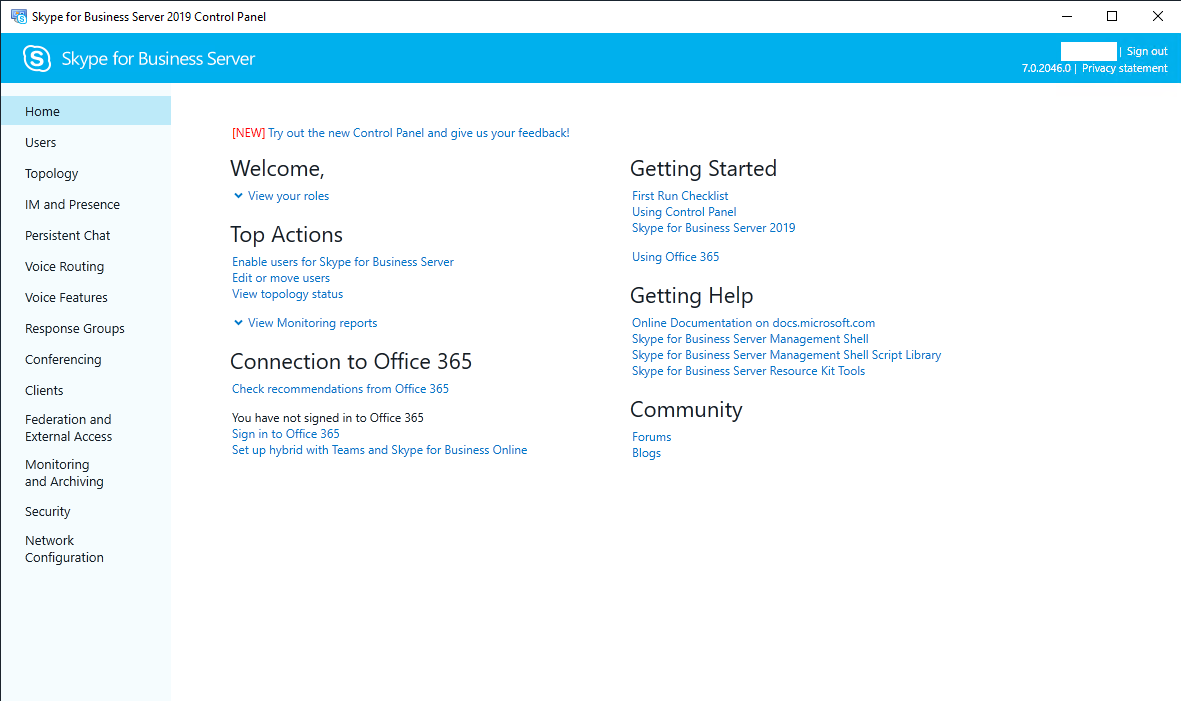

After reboot you can login to the Skype for Business Server 2019 Control Panel on the Front End Server.

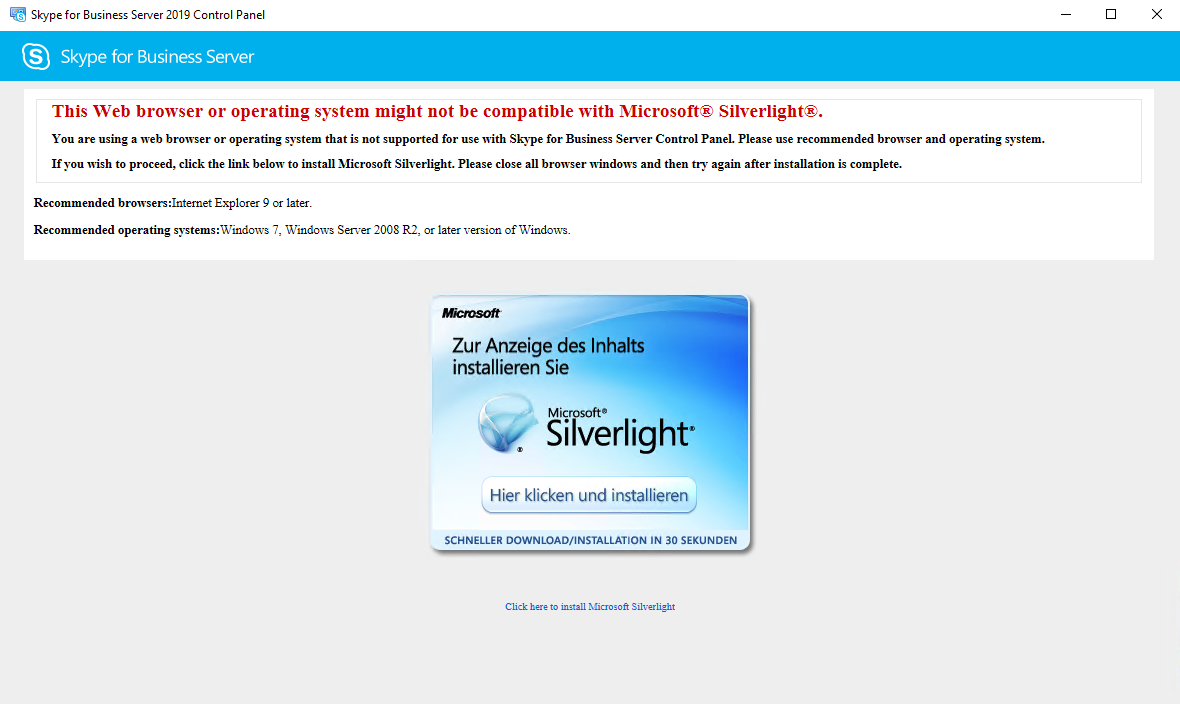

In my case I first need to install Silverlight for running the Control Panel.

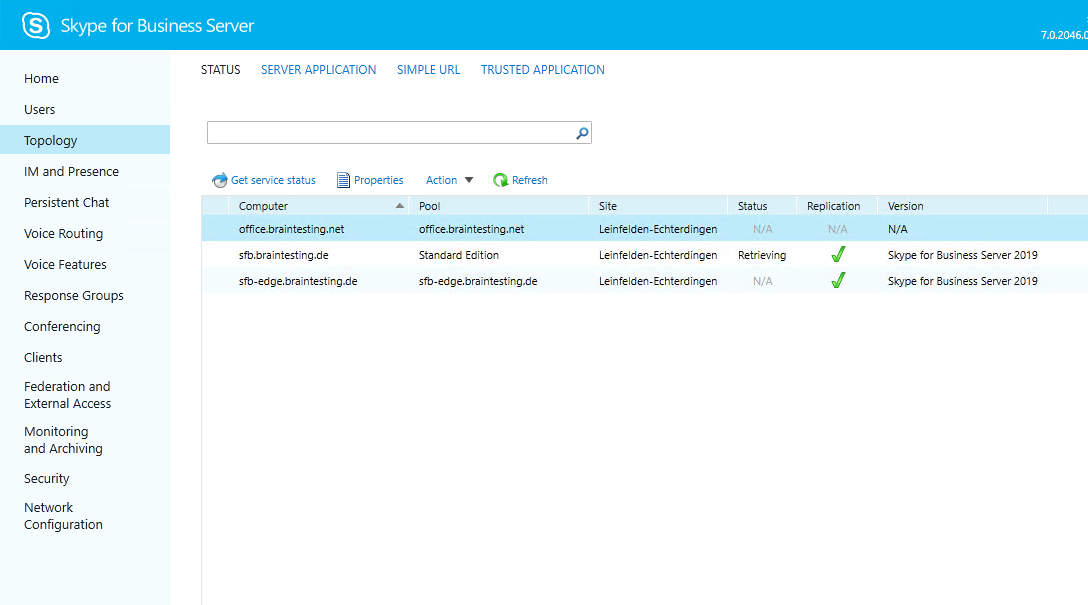

First thing to check is if the replication between the Front End and Edge Server is running.

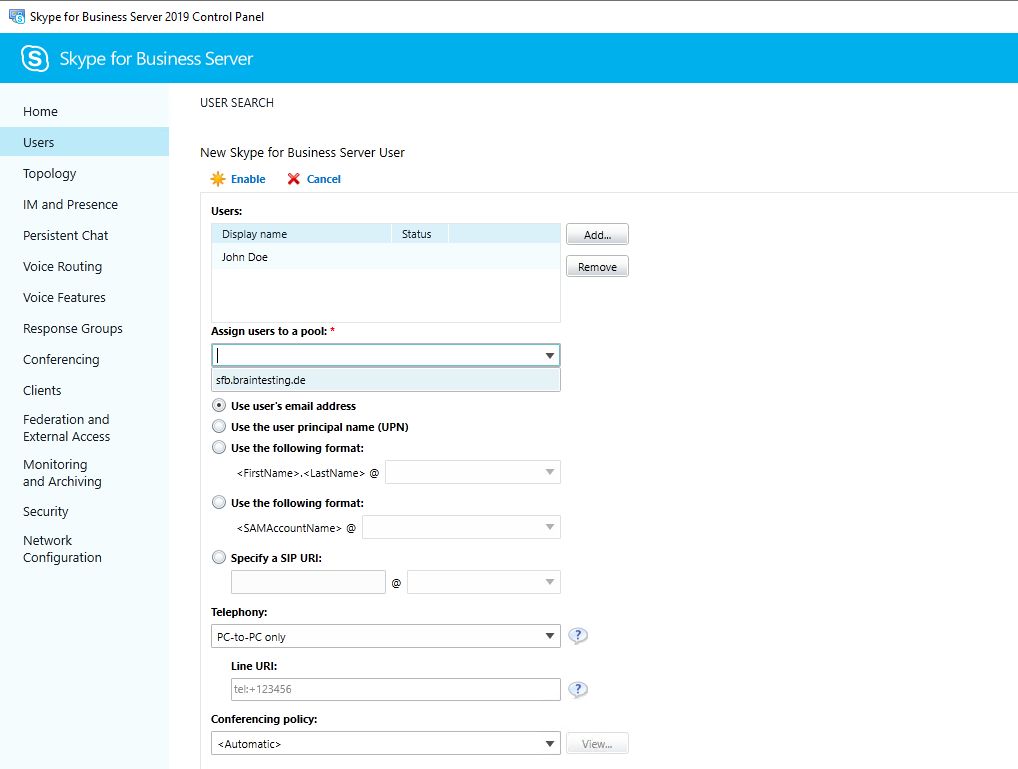

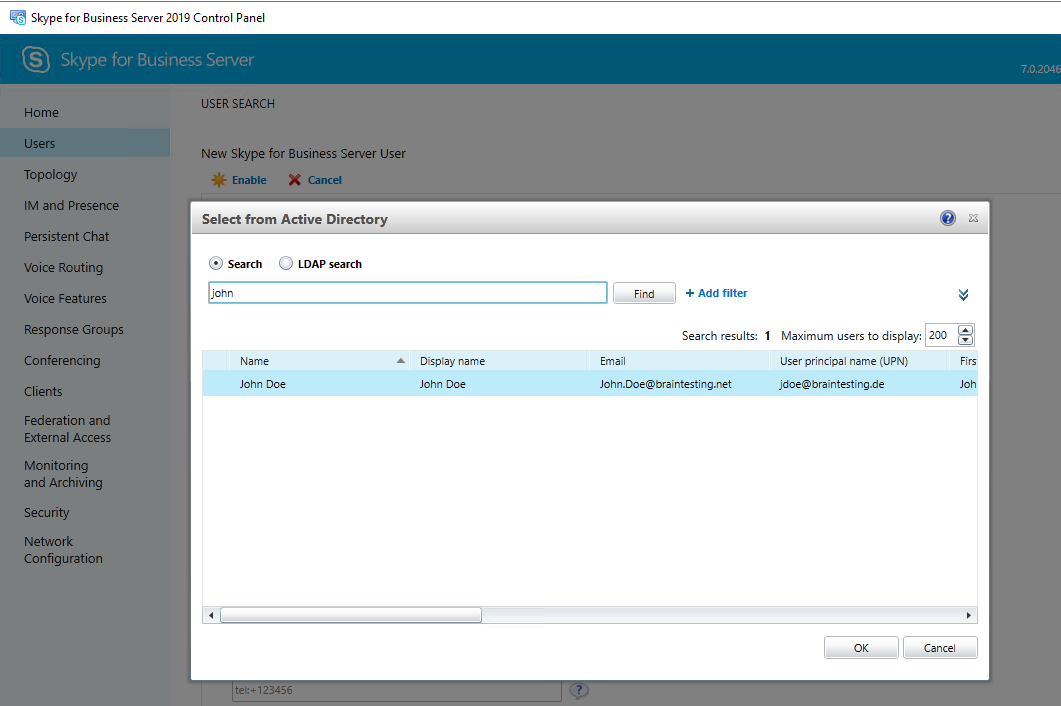

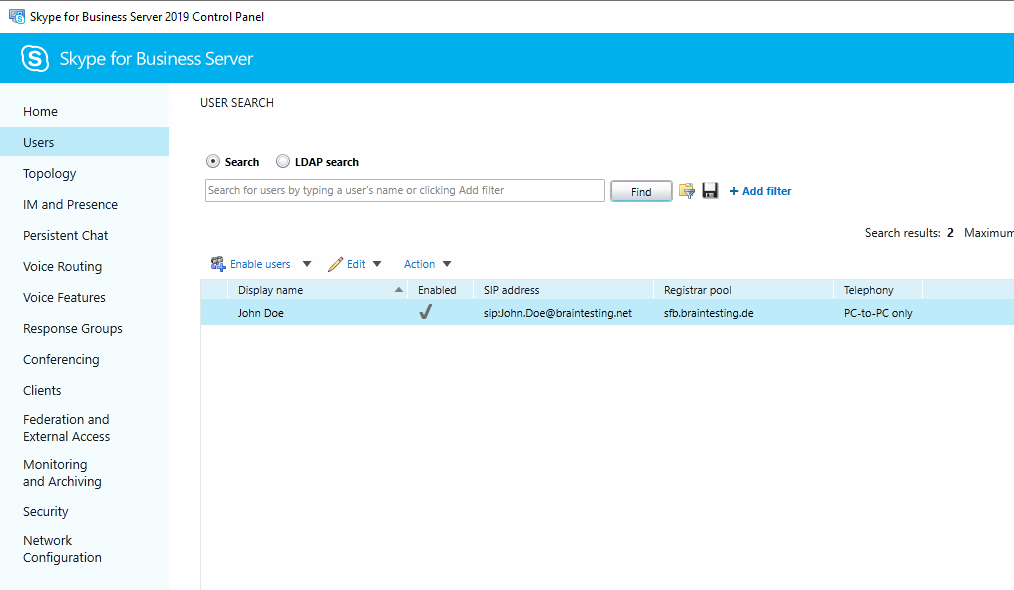

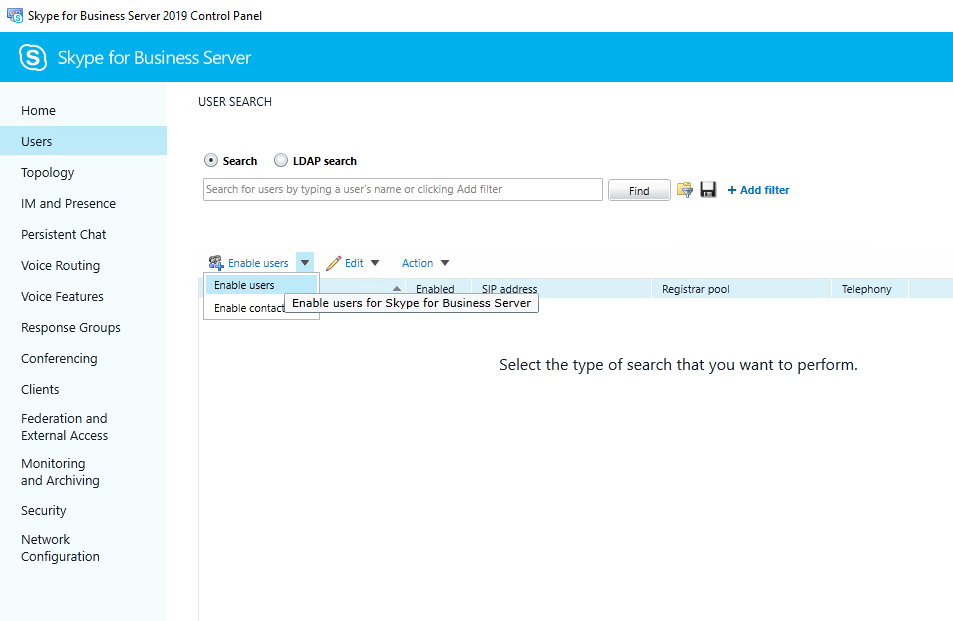

If everything is fine, you can enable users for Skype for Business

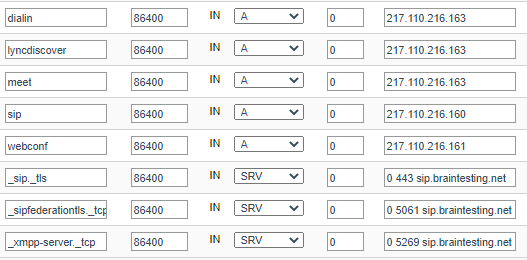

As we want to communicate with federated users from other companies with Skype for Business and want to allow communication with remote users and public users, first we check if the necessary external internet service dns records are set correctly.

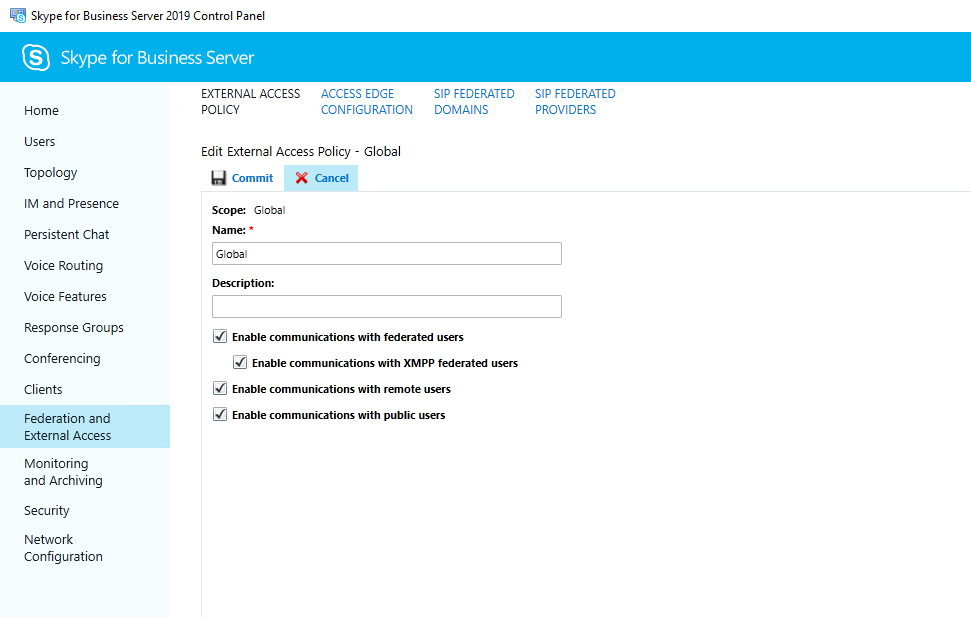

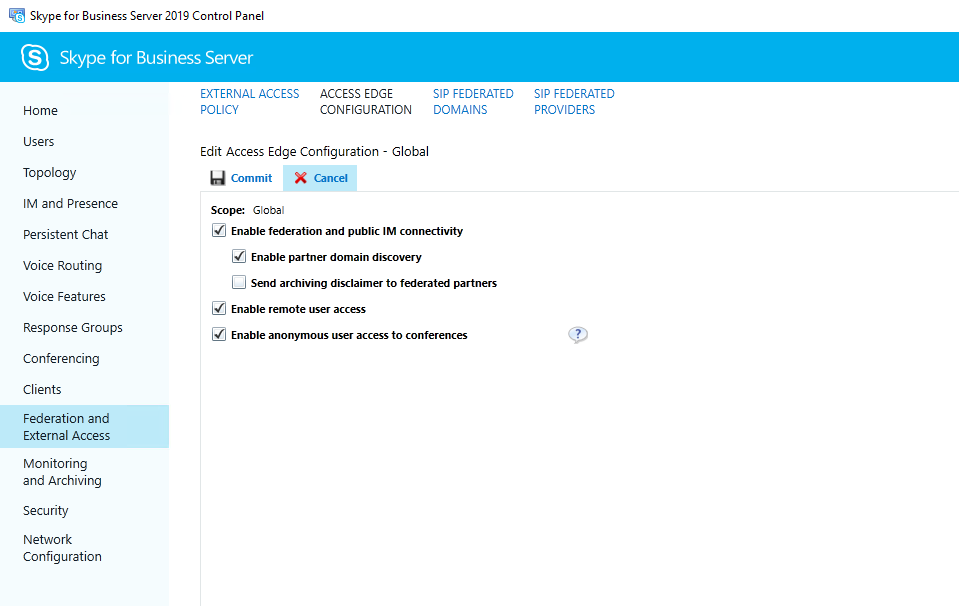

Second we must enable Federation and external access in the Control Panel under Federation and External Access and here under the External Access Policy and Access Edge Configuration.
To get the settings kick in, best is restart both servers, Front End and Edge Server!
